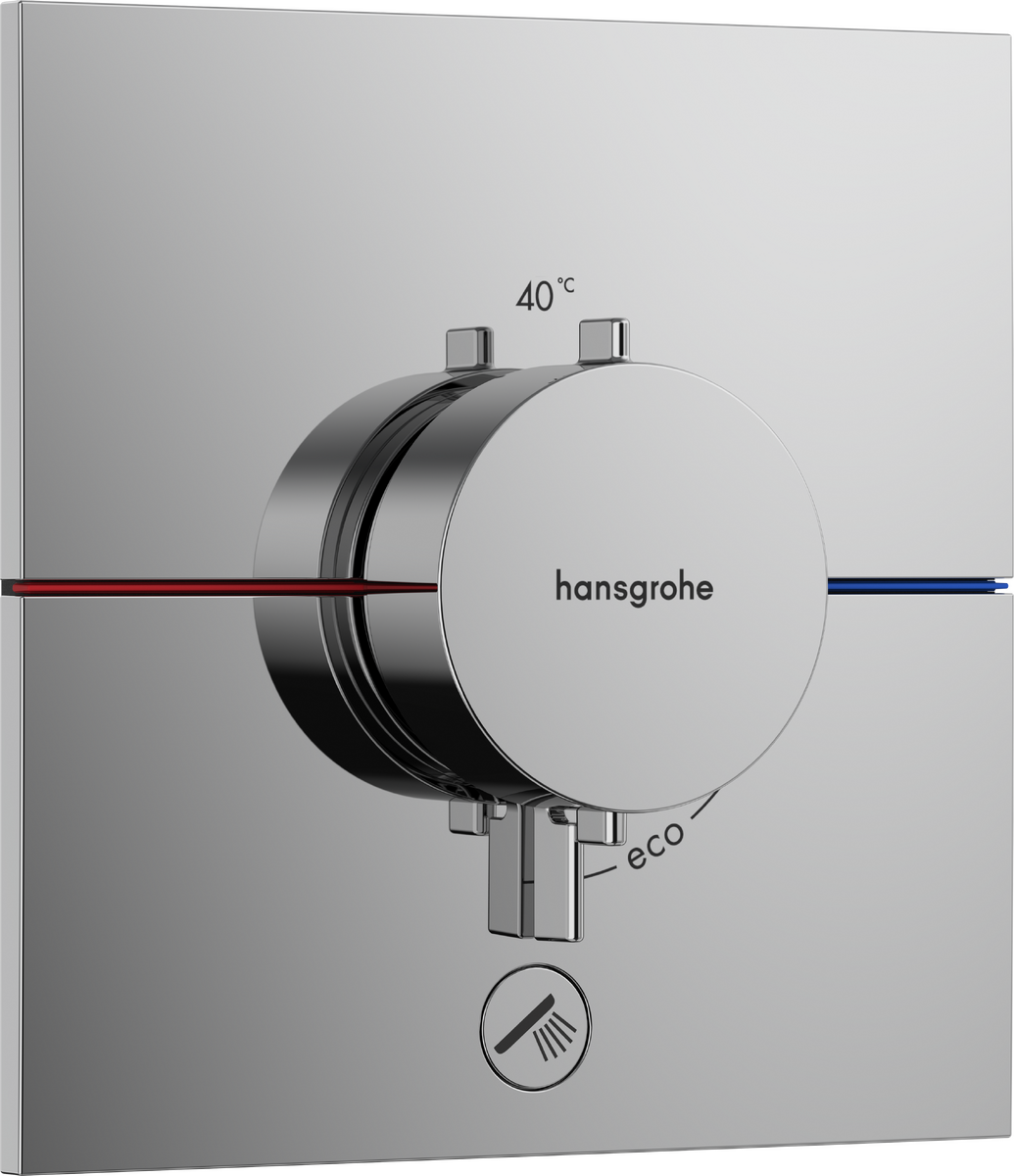

1 function and 1 additional outlet
Comfortable turning on / off of one outlet with large Select-paddle
Water flow control with stop outlet
Thermostatic mixer cartridge, Start/stop valve to operate the outlets
Installation type: concealed installation
Maximum flow rate at 1 bar: 18,5 l/min
Maximum flow rate at 3 bar: 32,8 l/min
Flow rate upper outlet: 23 l/min
Flow rate lower outlet: 23 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled outlet block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
The thermostatic mixer offers the possibility for thermal disinfection
Material button: metal
Material handles: metal
Connection type: basic set iBox universal 2 (# 01500180)
Thermostat is delivered with buttons Rain small, Rain large, hand shower, Waterfall, bath tub
Noise class: I
WRAS 2312022
REG4 2510704
Essential Item Required For Installation
