Concealed rough parts
2x female thread 1/2″ connections

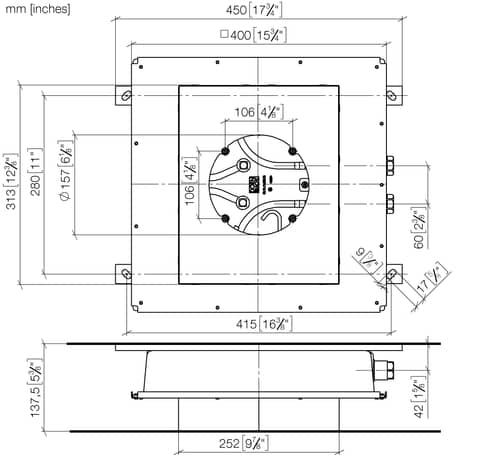

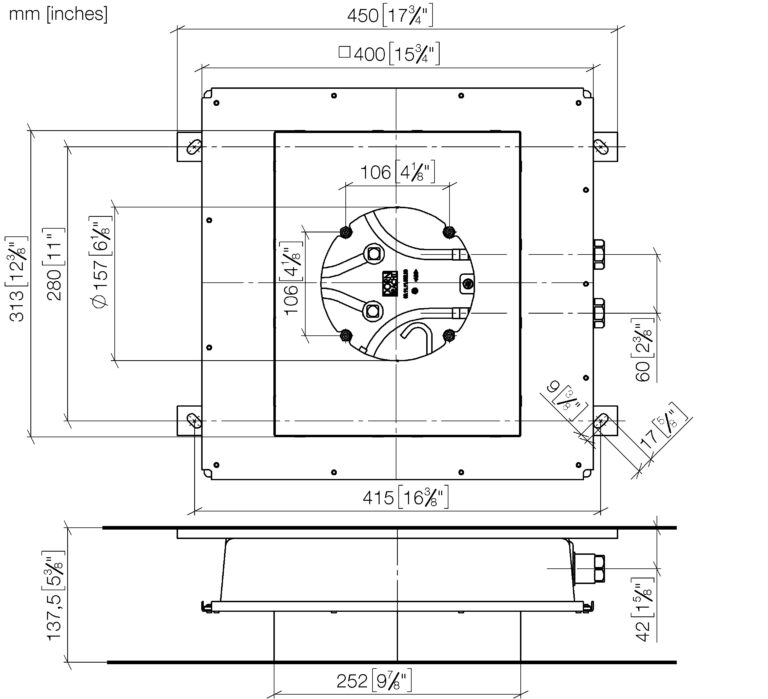

Flush-mounted reflection box Ø 360 mm RAL 9003 signal white
For simultaneous control of the jet types, we recommend the xTool thermostat module Separate LED power supply Input LED power supply
Electricity supply: 100-240 V AC, 50-60 Hz, 20 W Output LED power supply
12V DC (CV) Output specification LED power supply
SELV (Safety Extra Low Voltage)
Class 2 Ceiling module power supply
12V DC (CV)
Supply pipe 7 m Activation
ZigBee Light Link RGBW controller
Provided by customer: Zigbee gateway
Not suitable for outdoor use.
Not suitable for use in a steam room.
Not suitable for use in chlorinated or salty environments.
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7701).
Dornbracht recommends consulting a systems integrator.
WRAS
Pre-assembly kit for three-way diverter included
