Concealed rough parts
2x female thread 1/2″ connections

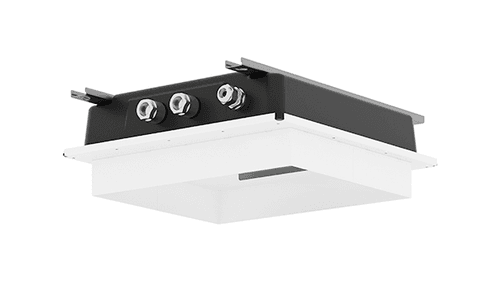

Flush-mounted installation box 360x 300 mm RAL 9003 signal white
For simultaneous control of the jet types, we recommend the xTool thermostat module Separate LED power supply Input LED power supply
Electricity supply: 100-240 V AC, 50-60 Hz, 20 W Output LED power supply
12V DC (CV) Output specification LED power supply
SELV (Safety Extra Low Voltage)
Class 2 Ceiling module power supply
12V DC (CV)
Supply pipe 7 m Activation
ZigBee Light Link RGBW controller
Provided by customer: Zigbee gateway
Not suitable for outdoor use.
Not suitable for use in a steam room.
Not suitable for use in chlorinated or salty environments.
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7701).
Dornbracht recommends consulting a systems integrator.
WRAS
Pre-assembly kit for three-way diverter included
