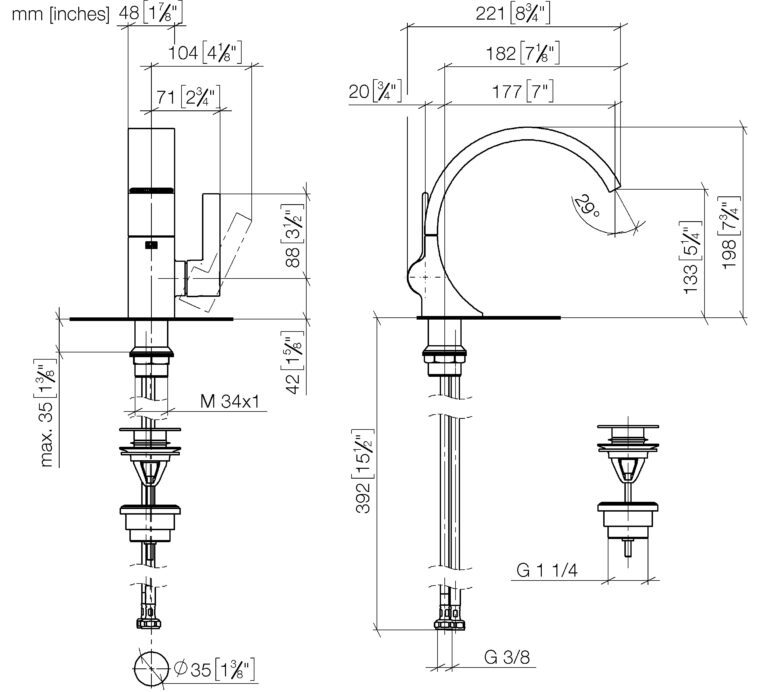

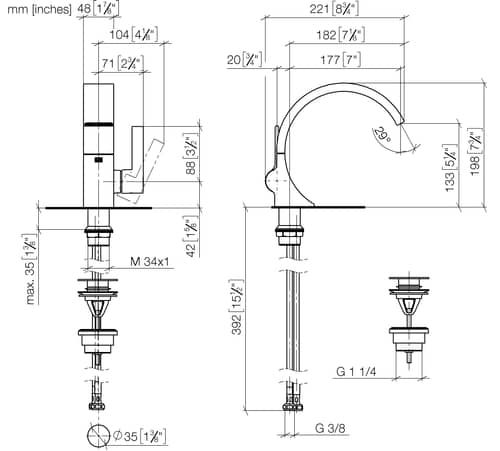

177 mm projection
Fixed spout
Rectangular, air-enriched flow
Height of mixer 198 mm
Height up to aerator 133 mm
Hole diameter 35 mm
2x screw-in M 8 x 1 pressure hose, leak-tested
Max. flow 4.5 l/min
Lead-free
With or without pop-up waste
Only suitable for basins with an overflow.
Must not be combined with continuous-flow heaters heaters.
Distance from centre of tap hole to wall min. 55 mm or to front edge of basin min. 40 mm.
