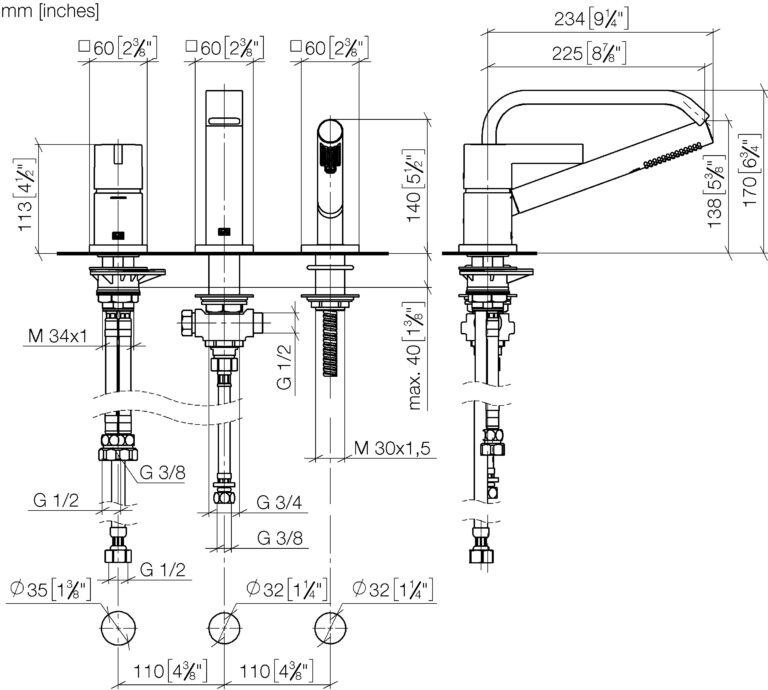

Height of mixer 110 mm
224 mm projection
Height up to aerator 138 mm
Spout: rectangular normal flow
Automatic bath/shower diverter
Hole diameter spout 32 mm
Hole diameter for complete hand shower set 32 mm
Max. flow for complete hand shower set 6.8 l/min
Metal shower hose 2250mm with integrated anti-twist protection
Rosette for spout 60 x 60mm
Rosette for mixer 60 x 60mm
Rosette for complete hand shower set 60 x 60mm
Complete hand shower set with anti-scale system
Complete hand shower set: normal flow
Max. flow 19.2 l/min at 3 bar flow pressure
Single-lever mixer hole diameter 35 mm
Intrinsic protection against back flow.

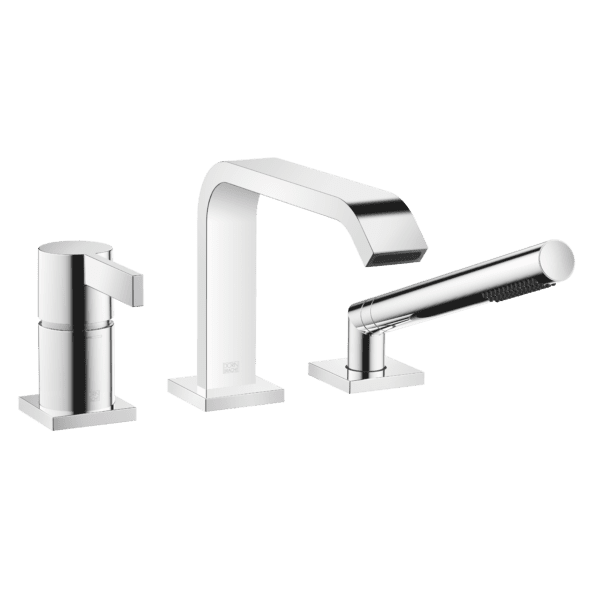

Imo Three-Hole Single-Lever Bath Mixer For Bath Rim Or Tile Edge Installation
27412670
Bath Taps & Mixers, Deck MountedImo Three-Hole Single-Lever Bath Mixer For Bath Rim Or Tile Edge Installation
Price range: £1,595.38 through £2,552.64
Dornbracht Finishes |
---|
No data available
