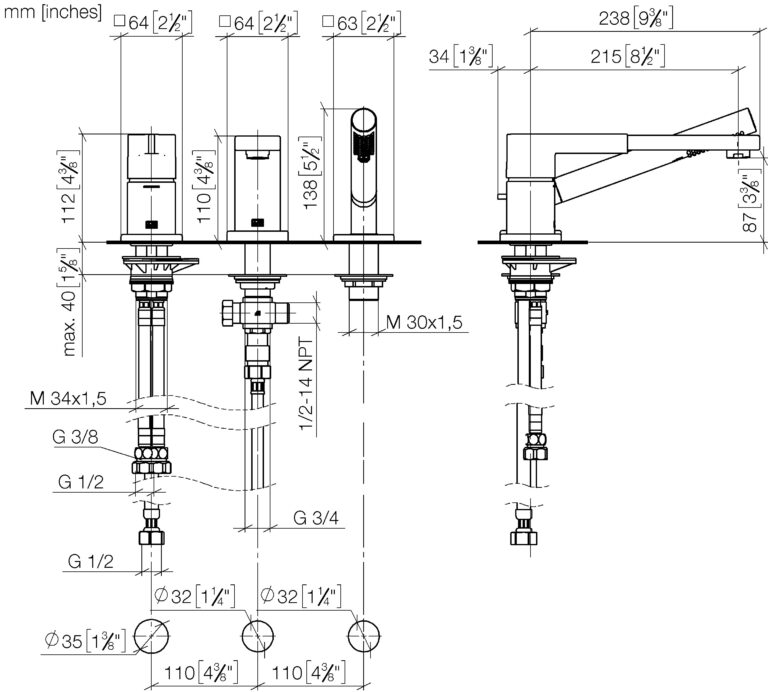

Height of mixer 110 mm
215 mm projection
Height up to aerator 84 mm
Spout: circular, air-enriched flow
Automatic bath/shower diverter
Hole diameter spout 32 mm
Hole diameter single-lever mixer 35 mm
Hole diameter for complete hand shower set 32 mm
Max. flow for complete hand shower set 6.8 l/min
Metal shower hose 1750mm with integrated anti-twist protection
Rosette for single-lever mixer 52 x 52mm
Rosette for complete hand shower set 63 x 63mm
Complete hand shower set with anti-scale system
Max. flow 26.4 l/min at 3 bar flow pressure
Rosette for spout 63 x 63mm
Intrinsic protection against back flow.
