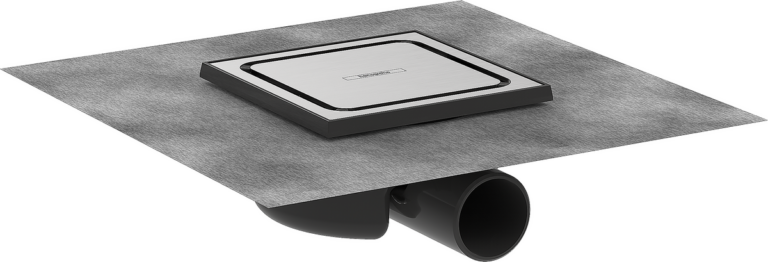

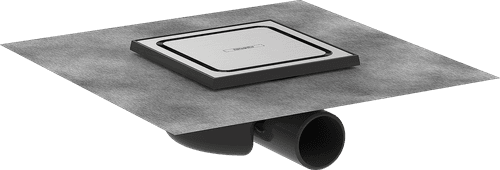

Consists of: design grate, base set, siphon, pre-assembled sealing membrane, screed protection cover
Tileable on the back side
Water seal: 50 mm
Connection diameter: DN50
Direction of outlet: pre-assembled horizontally, can be used vertically
Easy to clean surface
Height adjustable by 10 mm
Up to 35 l/min drainage capacity
Where to use: new construction, renovation
Removable Siphon
Rotatable and adjustable siphon body
Easy to clean siphon
Type of odour seal: fluid
Minimal installation height 80 mm
Pre-assembled sealing membrane
Material siphon: ABS
Mounting type: free in the floor
Grate material: Stainless Steel 304 (1.4301)
Grate width: 146 mm
