Concealed rough parts
Rain panel with 2 different spray modes
AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 6.8 l/min (at 3 bar)
TEMPEST RAIN: Natural rain, max. flow rate 5 l/min (at 3 bar)

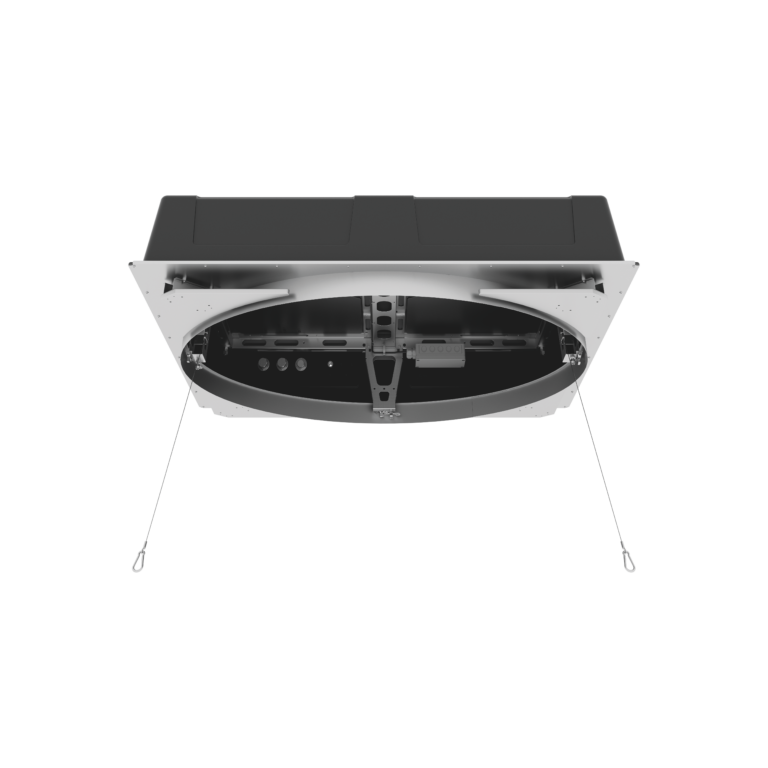

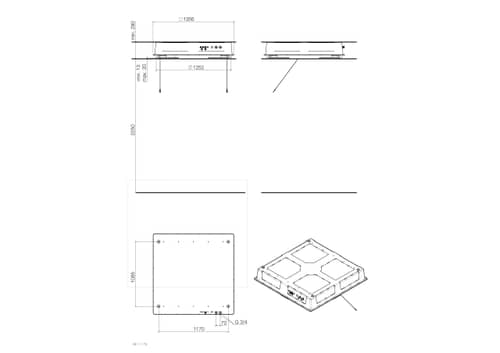

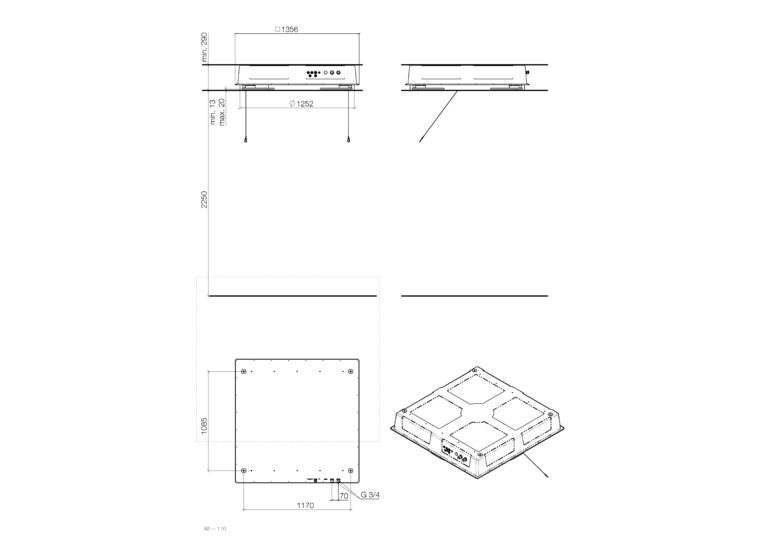

Ceiling installation enclosure 1356 x 1356 x 290 mm
Opening diameter 1252 mm
Ceiling construction with adequate structural strength for the permanent attachment of the device (weight: 57.5 kg / 127 lbs. (US)).
M8 threaded bolts (minimum strength: 2000 N) are required to secure the ceiling module Input LED power supply
Connector, 220-240V AC 50Hz power supply Output LED power supply
12V DC (CV) Output specification LED power supply
SELV (Safety Extra Low Voltage)
Provided by customer: Light switch Environment
Not suitable for use in a steam room.
Not suitable for outdoor use.
Not suitable for use in chlorinated or salty environments.
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7701).
Pre-assembly kit for three-way diverter included
