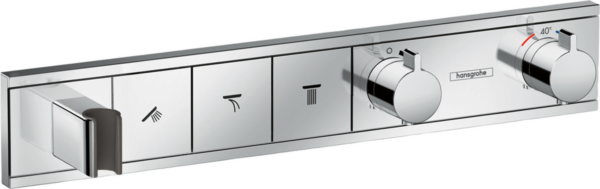

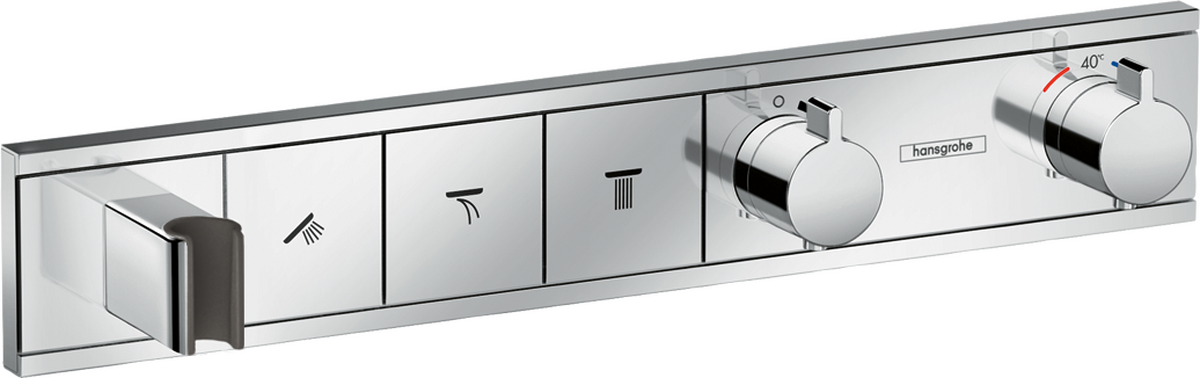

Consists of: Thermostatic mixer,
Depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
Designed to run 3 outlets
Multiple outlets can be run simultaneously
Select push-button on/off control for 3 outlets
Wall-mounted
Thermostat cartridge, start/ stop cartridge
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Safety stop at 40°C
Maximum temperature can be adjusted on installation
Non-return valve
If running with a pump, please specify a universal (negative head) pump
Connection type: basic set
Essential Item Required For Installation
