Collection Squaro Infinity
Model / Shower Tray Dimensions
UDQ1070SQI2LV or 2RV – 1000mm x 700mm
UDQ1075SQI2LV or 2RV – 1000mm x 750mm
UDQ1170SQI2LV or 2RV – 1100mm x 700mm
UDQ1175SQI2LV or 2RV – 1100mm x 750mm
UDQ1180SQI2LV or 2RV – 1100mm x 800mm
UDQ1190SQI2LV or 2RV – 1100mm x 900mm
UDQ1370SQI2LV or 2RV – 1300mm x 700mm
UDQ1375SQI2LV or 2RV – 1300mm x 750mm

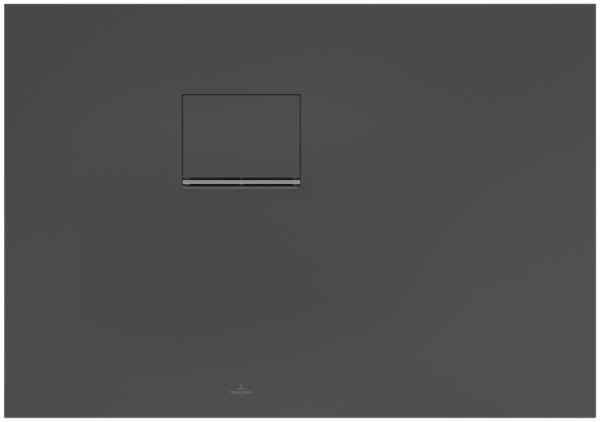

Shower tray
Available with installation with Left against the wall or Right against the wall
Only flush-fit installation
Technical information:: Cut shower tray (side unprocessed)., Drainage capacity: 48 l/min, The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274.
All shower trays are classified as anti-slip class C (in accordance with DIN51097), Surface-mounted models can be fitted in a niche or flush-fit with the floor.
Quaryl shower trays can be cut to size on site according to the installation instructions; detailed video at pro.villeroy-boch.com/squaroinfinity
Outlet cover in matching matt colour with chrome-plated strip.
The extra charge for cutting already in the total price!
Not included in scope of delivery:: All shower trays are supplied without support/base.
With cut shower trays, we recommend the use of a composite seal in accordance with ETAG 022 on the floor structure below the shower tray in order to prevent any moisture from penetrating the floor structure.
Diameter: 90 mm
Quaryl®
