Collection Squaro Infinity
Model / Shower Tray Dimensions
UDQ1010SQI1 – 1000mm x 1000mm
UDQ1090SQI2 – 1000mm x 900mm
UDQ1280SQI2 – 1200mm x 800mm
UDQ1290SQI2 – 1200mm x 900mm
UDQ1480SQI2 – 1400mm x 800mm
UDQ1490SQI2 – 1400mm x 900mm

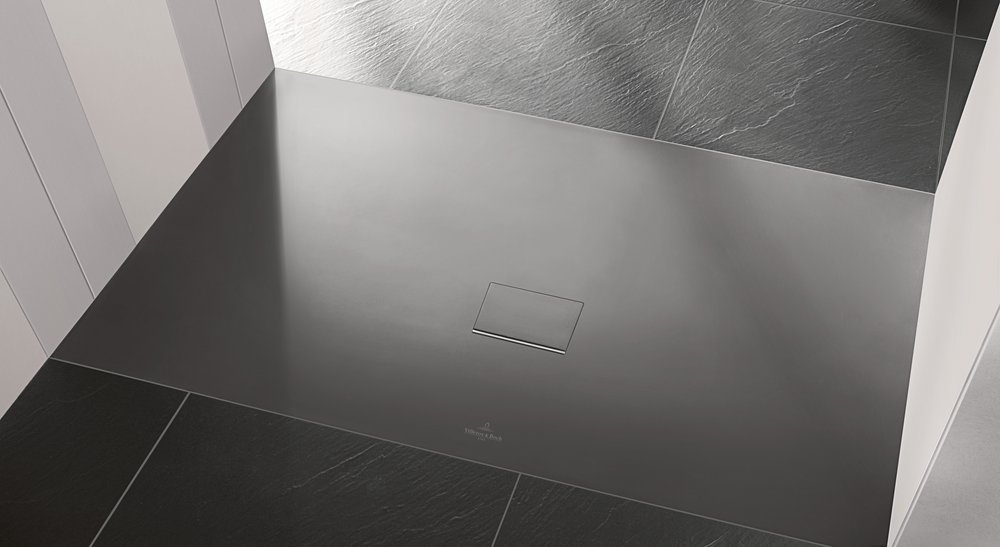

Shower Tray
Standard models for all installation types
Technical information:: Drainage capacity: 48 l/min,
The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used.
Please note: this outlet fitting does not conform to EN 274.
All shower trays are classified as anti-slip class C (in accordance with DIN51097),
These shower trays are not cut and can be used for all types of installation (recessed in the floor, on the floor, on a base).
Quaryl shower trays can be cut to size on site according to the installation instructions
Detailed video at pro.villeroy-boch.com/squaroinfinity
Not included in scope of delivery:: All shower trays are supplied without support/base.
Diameter: 90 mm
Quaryl®
