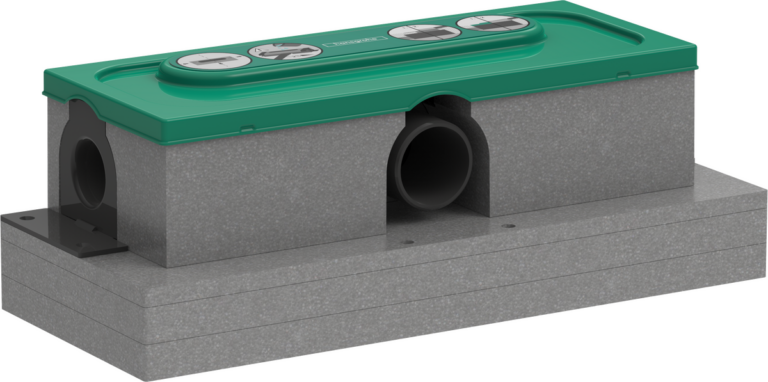

Consists of: base set, siphon, pre-assembled sealing membrane, height adjustment boards, screed protection cover
Suitable for all shower drains
Where to use: new construction, renovation
Water seal: 50 mm
Minimal installation height: 75 mm
Drainage capacity with siphon: up to 42 l/min
Drainage capacity with Dryphon: up to 60 l/min
Connection diameter: DN50
Direction of outlet: horizontal
Connection: 3-sided
Easy fixation to the floor with mounting bracket
Height adjustable with the foam boards
Mounting type: wall-mounted, free in the floor
Easy to clean siphon
Removable siphon
Suitable for soundproof mounting
