ViConnect
Article number 92093300

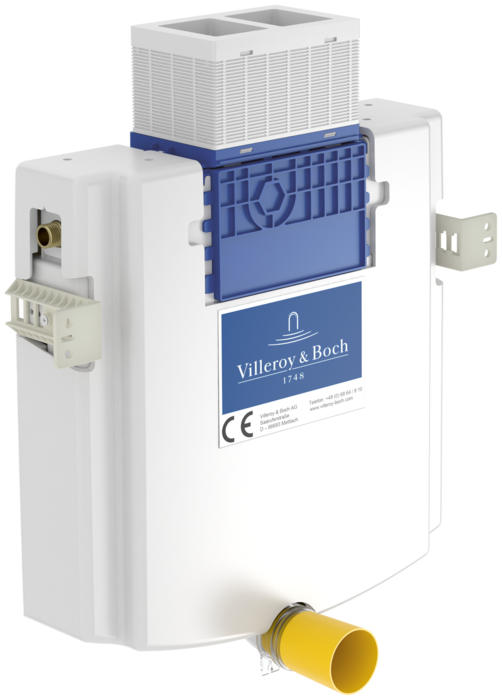

Concealed cistern
Various materials
Size: 460 x 545 x 155 mm
For installation in furniture height 820 mm with CC122 for operation from above, Easy connection to flush plate via flexible cables with bayonet joint with fixing brackets, without fastening materials, without attachment and waste bend for wall-mounted toilet
EN 14055EN 14055
Individual packaging materials
For combination with: for wall-mounted WC
With filling valve type AG (air gap) WRAS compliant
Front/top operated, button function transmitted to drain fitting via flexible cables, connection to flush plate via bayonet joint condensation water insulated flush-mounted cistern (CC-122- S-F0-2V-2C), with dual-flush (7.5-4.5 l / 4-2 l), factory setting 6/3 l, button function transmitted to drain fitting via flexible cables, flushing pipe bend with protection cap, filling valve Noise Class I, 2-part angle valve connection set R1/2, protection box for access opening can be cut to size, certification marks for concealed cistern: Noise Class I
