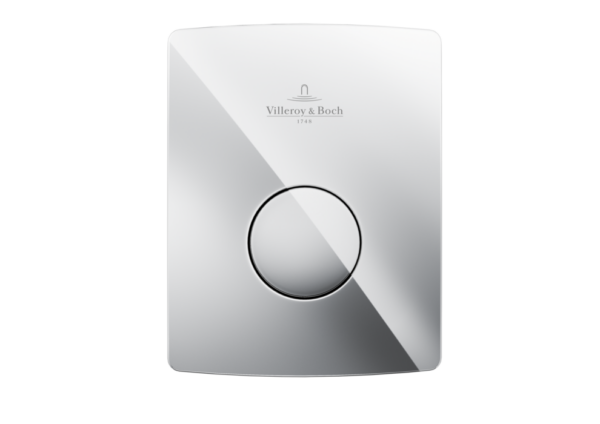

ViConnect Urinal Flush Plate U100

92194461 / 92194468 / 92194469

,

ViConnect Urinal Flush Plate U100

Price range: £152.10 through £189.90

Availability: Special Order - Delivery Date TBC

SKU: 92194461 / 92194468 / 92194469 Categories: , Brand: ,

ViConnect
Model: 92194461
Urinal flush plate
U100
Made of plastic
Available finishes: Chrome, White, Brushed Chrome
Size: 126 x 162 x 17 mm
Angular
DIN EN 12541
Individual packaging materials
Made of high-quality plastic, for hand-operated urinal cartridge valve technology
Finished installation kit, consisting of cover plate with push button, pressure bolt, with installation frame, with pneumatic urinal cartridge valve with external thread 29 x 2 mm, with cartridge filter,
operating pressure max. 10 bar, flow rate tested according to DIN EN 12541, noise class I < 20 dB (A), flushing time: 4-20 sec, infinitely adjustable,
with vandal-safe special fastening of the cover plate, with fastenings, pneumatic concealed Urinal flush, independent of water pressure,
flow pressure min. 0.5 bar, flow pressure max. 10.0 bar
