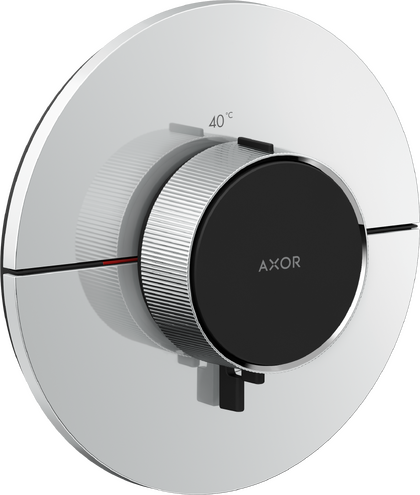

Temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostatic mixer handle
Water flow control with stop outlet
Thermostatic mixer cartridge
Installation type: concealed installation
Maximum flow rate at 1 bar: 12,8 l/min
Maximum flow rate at 3 bar: 24 l/min
Flow rate upper outlet: 24 l/min
Flow rate lower outlet: 23 l/min
Flow rate by simultaneous use of all outlets: 34,8 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Flat escutcheon for more space in the shower
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled outlet block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
Material button: metal
Material handles: metal

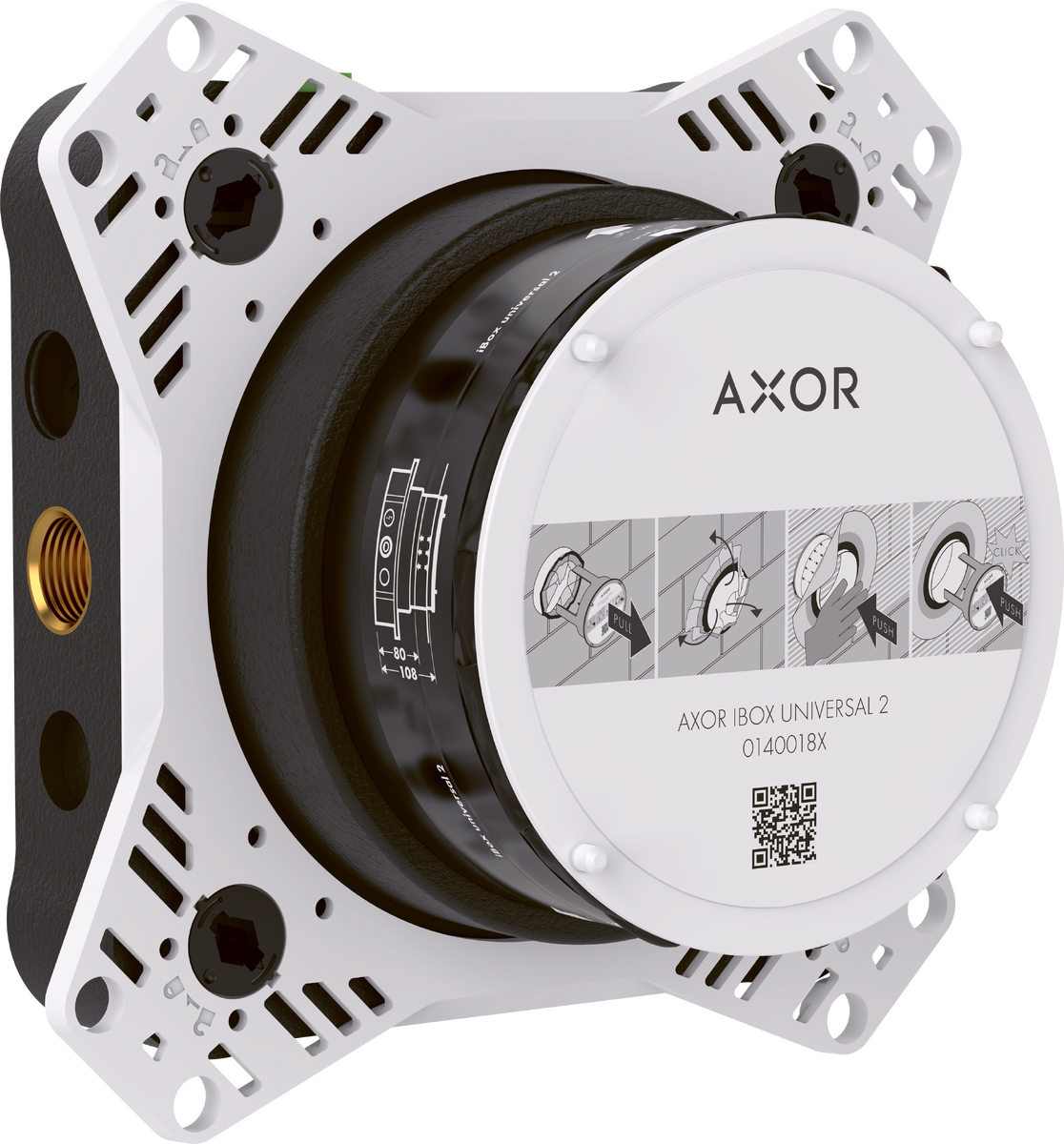

Connection type: basic set iBox universal 2 (# 01400180)
Noise class: I
WRAS 2312022
REG4 2406878
Essential Item Required For Installation
