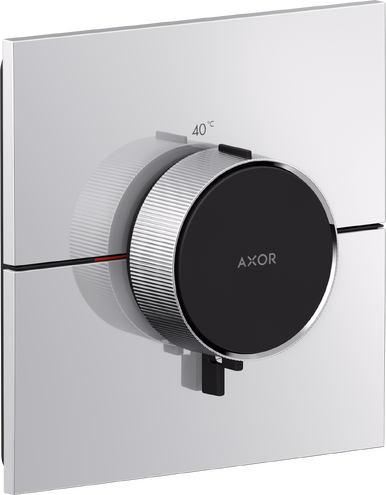

Temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostatic mixer handle
Water flow control with stop outlet
Installation type: concealed installation
Maximum flow rate at 1 bar: 11.5 l/min
Maximum flow rate at 3 bar: 27 l/min
Flow rate upper outlet: 27 l/min
Flow rate lower outlet: 27 l/min
Flow rate by simultaneous use of all outlets: 34,8 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Flat escutcheon for more space in the shower
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled outlet block
Handles always at the same height regardless of the installation depth of the basic set
Material button: metal
Material handles: metal
Noise class: I
WRAS 2312022
REG4 2406878
