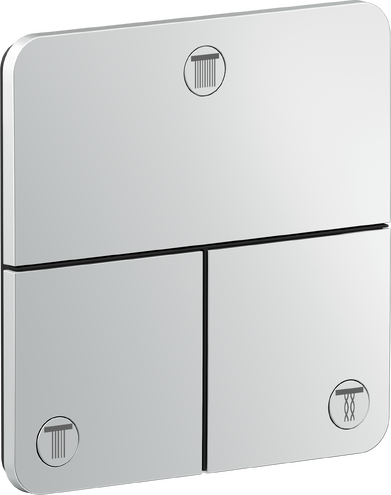

3 outlets
Simultaneous use of several outlets
Comfortable turning on / off of outlets with large Select-paddle
Start/stop valve to operate the outlets
Connection type: basic set iBox universal 2 (# 01400180)
Flow rate upper outlet 26 l/min at 3 bar
Flow rate left and right: 26 l/min
Maximum flow rate at 3 bar: 32 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled outlet block
Maximum temperature cannot be adjusted on installation
Flat escutcheon for more space in the shower
Valve is delivered with buttons Rain small, Rain large, hand sower, Waterfall and MonoRain
Material button: metal
Noise class: I
WRAS 2312022
REG4 2406878
Essential Item Required For Installation
