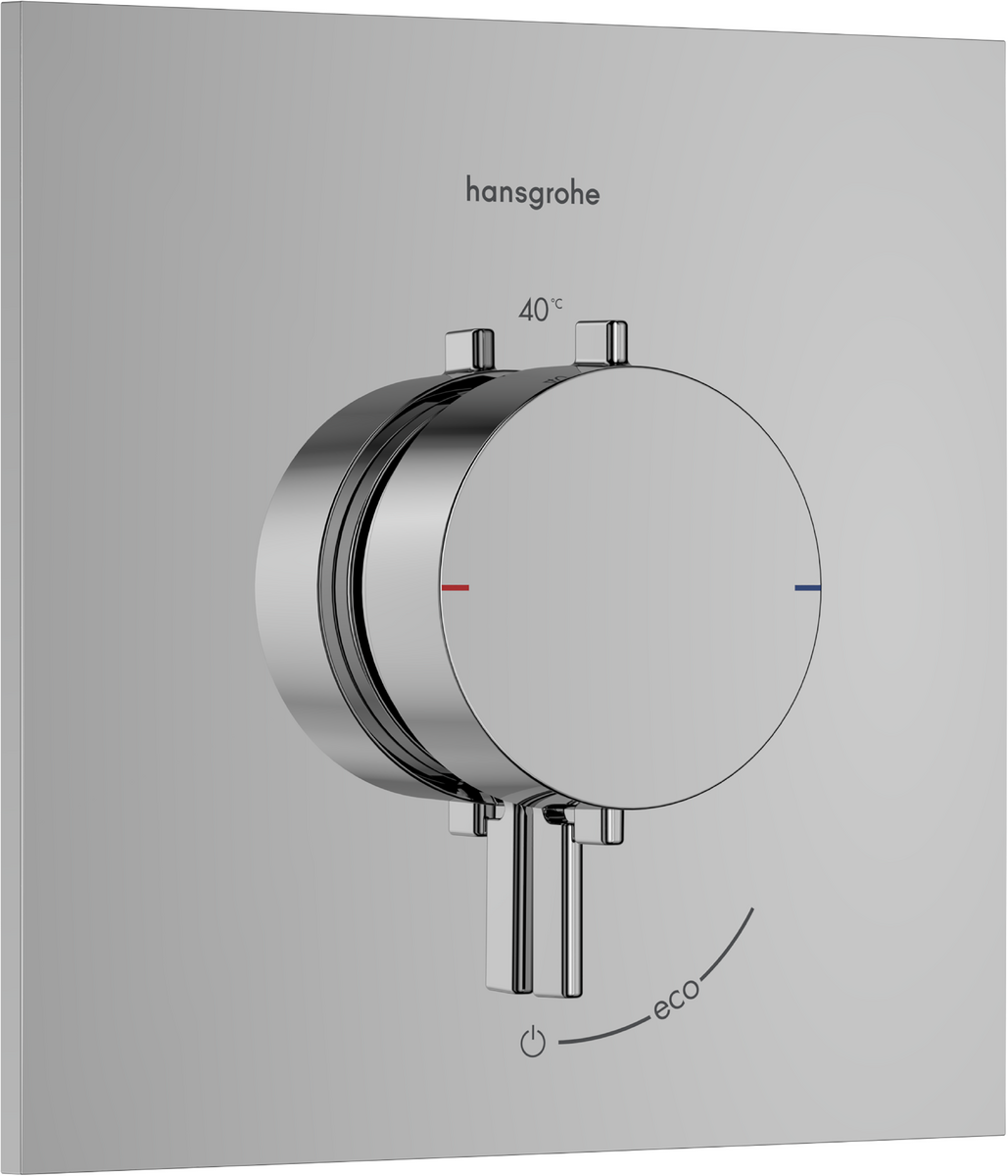

1 outlet
Temperature and water flow control
Thermostatic mixer cartridge
Installation type: concealed installation
Maximum flow rate at 1 bar: 14 l/min
Maximum flow rate at 3 bar: 25.2 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled outlet block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
Material handles: metal
Connection type: basic set iBox universal 2 (# 01500180)
Noise class: I
WRAS 251204008
Essential Item Required For Installation
