APPLICATION PURPOSES
For masonry walls
For installation in part or room-height prewall installations
For installation in room-height installation walls
For floor-standing and wall-hung WCs

CHARACTERISTICS

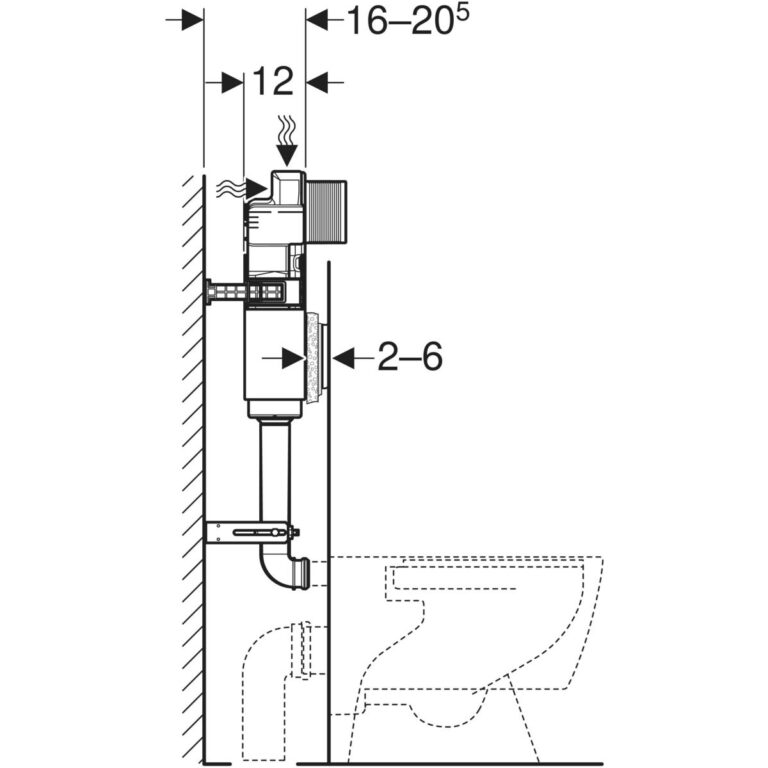

Adjustable in depth

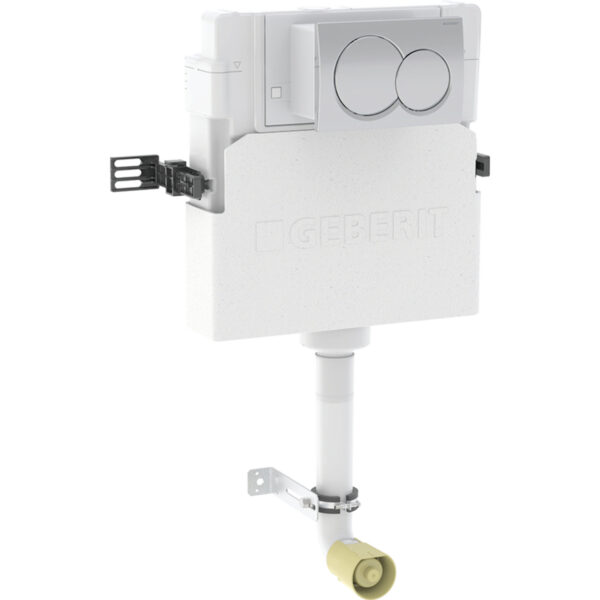

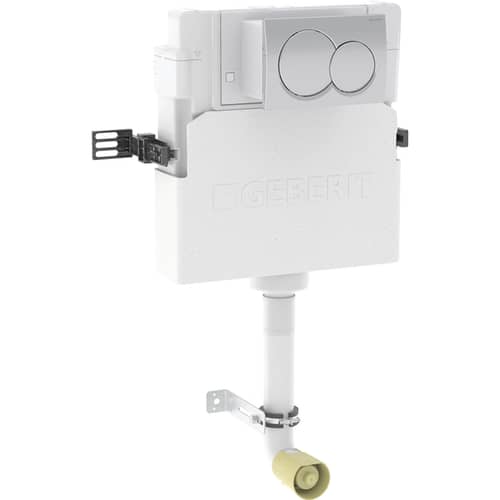

Geberit Alpha concealed cistern 12 cm fully insulated against condensation
For front actuation, suitable for dual flush
Immediate post flush possible with factory setting
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Flush bend fitted
Water supply connection on the rear or top centre
Protection box for service opening, can be cut to length, protects against moisture and dirt

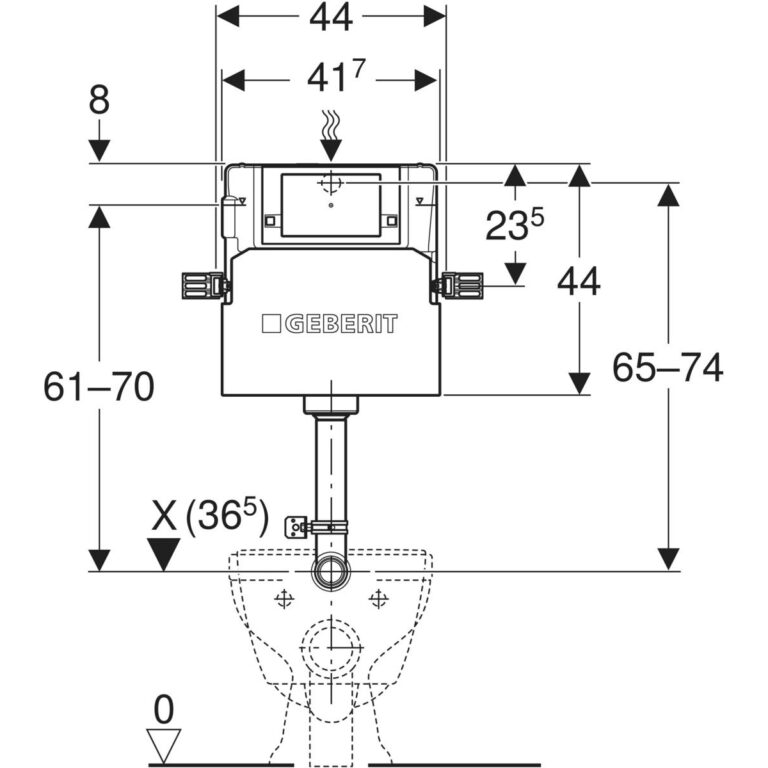

TECHNICAL DATA
Flow pressure 0.1–10 bar
Operating temperature, water max. 25 °C
Flush volume, factory setting 5.8 / 3 l
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range 2–4 l
Button shape round
Product material Plastic

SCOPE OF DELIVERY
Water supply connection unit R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
Geberit Alpha01 flush plate for dual flush, round
Fastening for flush bend
Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material
