APPLICATION PURPOSES
For masonry walls
For installation in part-height prewall installations
For floor-standing and wall-hung WCs

CHARACTERISTICS
Adjustable in depth

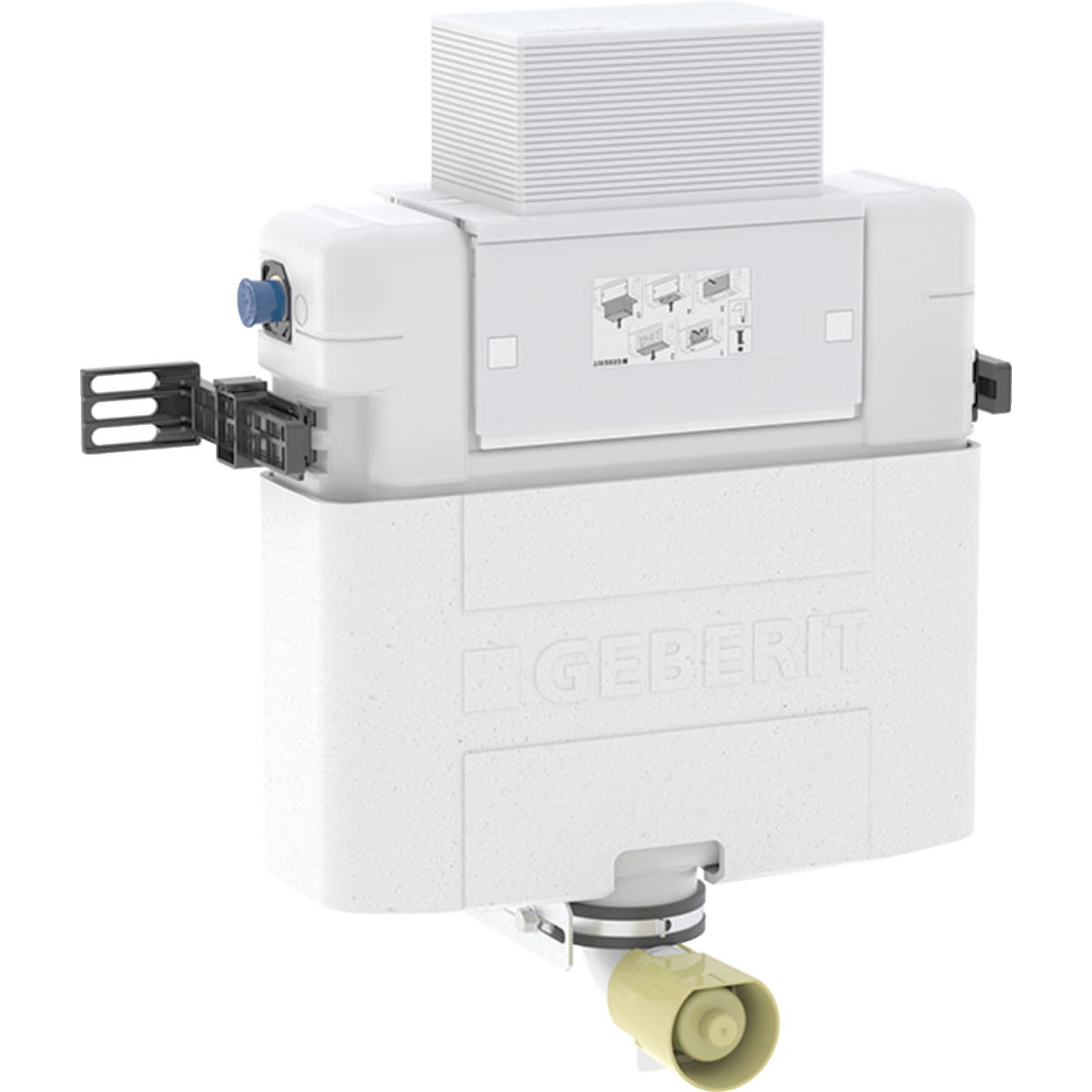

Geberit Alpha concealed cistern 12 cm fully insulated against condensation
For top or front actuation, suitable for dual flush
Immediate post flush possible with factory setting
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Welded flush bend
Water supply connection on the left or rear left
Protection box for service opening, can be cut to length, protects against moisture and dirt

TECHNICAL DATA
Flow pressure 0.1–10 bar
Operating temperature, water max. 25 °C
Flush volume, factory setting 5.8 / 3 l
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range 2–4 l
Product material Plastic

SCOPE OF DELIVERY
Water supply connection R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Fastening for flush bend
2 fixing brackets
Fastening and protection material
Geberit pull disc
