APPLICATION PURPOSES
For masonry walls
For installation in part or room-height prewall installations
For installation in room-height installation walls
CHARACTERISTICS
Geberit Alpha concealed cistern 12 cm fully insulated against condensation
For front actuation, suitable for dual flush
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Flush bend fitted
Water supply connection on the rear or top centre
Connection hose on angle stop valve can be attached without tools
Washdown WC
Floor-standing
Back-to-wall
Rimless WC ceramic appliance featuring Rimfree flush technology
Type 1, full flush volume 6 / 5 / 4 l, in accordance with EN 997
4 l flush
Horizontal or vertical outlet
Shrouded
Hidden fastening
WC seat made of Duroplast
Overlapping WC lid
TECHNICAL DATA
Flow pressure 0.1–10 bar
Operating temperature, water max. 25 °C
Flush volume, factory setting 5.8 / 3 l
Button shape round
Product material Vitreous china

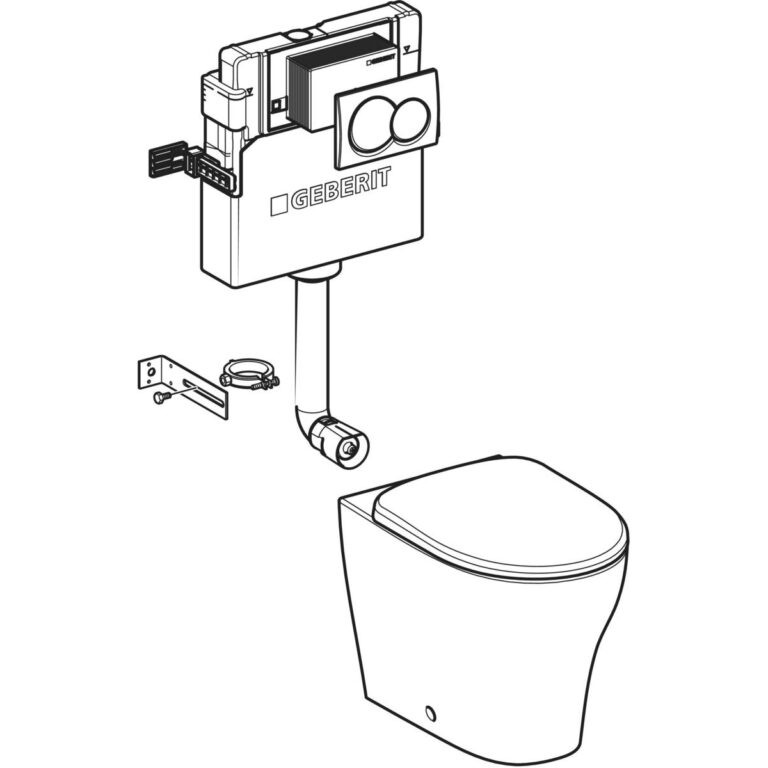

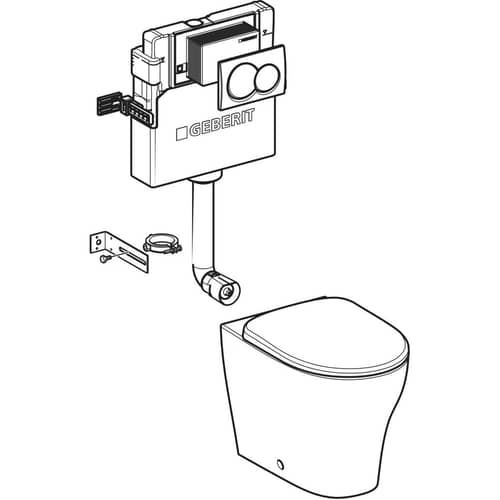

SCOPE OF DELIVERY
Water supply connection unit R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening, made of polystyrene foam
Geberit Alpha01 flush plate for dual flush, round
2 distance bolts
Flush bend 90°
Protection plug
Fastening for flush bend
Flush bend extension, ø 45 mm
2 fixing brackets
Fastening material

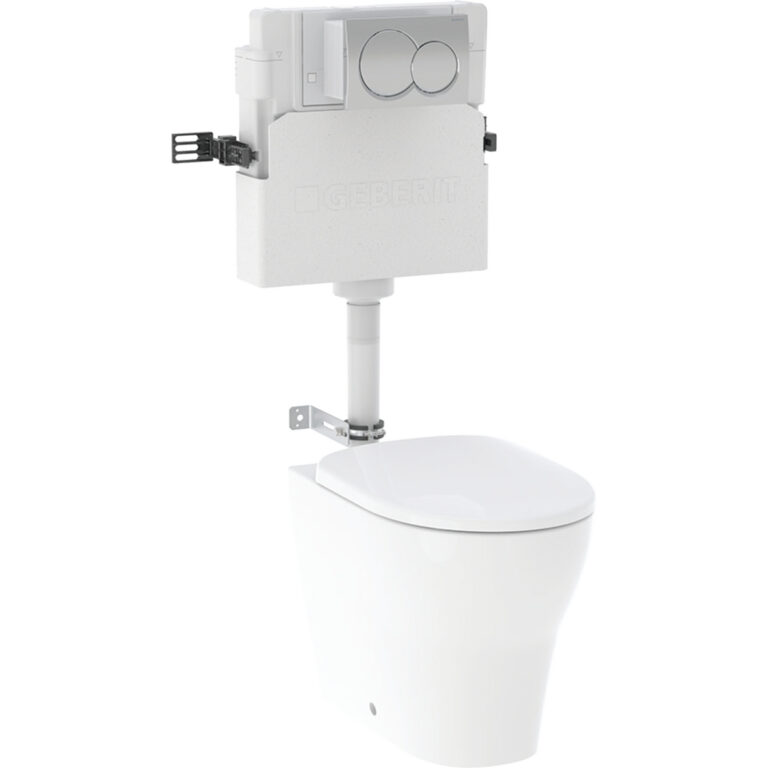

Geberit Selnova floor-standing WC set, Premium, washdown, back-to-wall, horizontal or vertical outlet, shrouded, Rimfree, with WC seat
