APPLICATION PURPOSES
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25 cm
For the installation of Geberit urinal controls
For mounting urinals

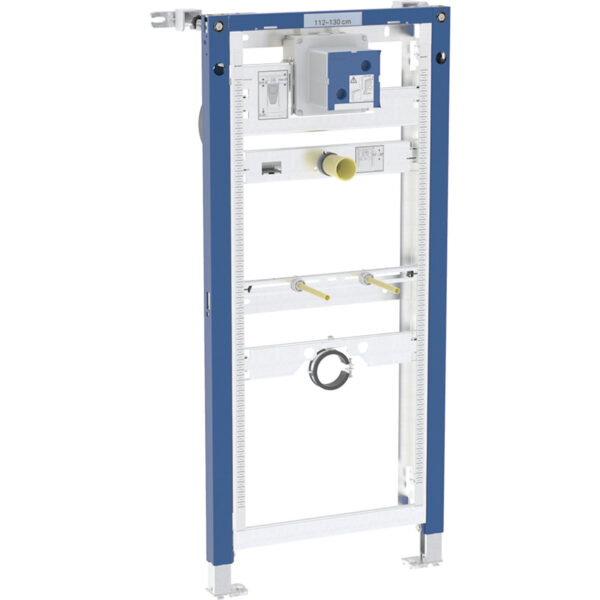

CHARACTERISTICS
2025 range
Statically self-supporting frame, protected against corrosion with powder coating
With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
Alternative fastening point for wall anchors
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Element height adjustable to urinal, 112–130 cm
Universal concealed housing for Geberit urinal flush controls
Terminal for electrical connection in concealed housing
Water supply connection on the right, on the concealed housing
Water supply connection compatible with MasterFix and MeplaFix
Elbow connector can be mounted without tools
Premounted stop valve with throttle
With built-in conduit pipe to rinse the pipeline
Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools
Flush hose can be bent
Flush hose with guide to prevent standing water
Fastening for inlet ø 32 mm, height-adjustable
Fastening for connection bend, height-adjustable and soundabsorbing
Urinal fasteners M8 width- and height-adjustable
Crossbars with centring marks, adjustable without tools
Additional fastening possible for urinal with accessories
Can be refitted with accessories to fit urinals with spray head

TECHNICAL DATA
Flow pressure 1–8 bar
Test pressure, water max. 16 bar
Test pressure, air / inert gas max. 3 bar
Operating temperature, water max. 30 °C
Flow rate at 1 bar without flow limiter 0.3 l/s
Flow rate at 1 bar with flow limiter 0.18 l/s
Product material Steel

SCOPE OF DELIVERY
Water supply connection R 1/2″
Protection box with cover
2 wall anchors
Connection pipe between inlet ø 32 mm and urinal, with seal to urinal
Straight connector made of PVC, ø 50 mm
Urinal trap ø 50 mm, with seal on urinal
Fastening and protection material
