APPLICATION PURPOSES
For metal and wood frame walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–20 cm

CHARACTERISTICS
2025 range
Statically self-supporting frame, protected against corrosion with powder coating
Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm
Alternative fastening point for wall anchors
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Galvanised leg supports protected against corrosion
Connection bend can be mounted without tools
Geberit Alpha concealed cistern 12 cm fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
For front actuation, suitable for dual flush
Immediate post flush possible with factory setting
Water supply connection on the rear or top centre
Protection box for service opening, can be cut to length, protects against moisture and dirt
With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
Fastening option for electrical connection
Washdown WC
Wall-hung
Rimless WC ceramic appliance featuring Rimfree flush technology
Easy fastening with Easy Fast Fixing (type EFF3)
Type 1, full flush volume 6 / 5 / 4 l, in accordance with EN 997
Shrouded
WC seat made of Duroplast
4 l flush
Overlapping WC lid

TECHNICAL DATA
Flow pressure 0.1–10 bar
Operating temperature, water max. 25 °C
Flush volume, factory setting 5.8 / 3 l
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range 2–4 l
Button shape round
Product material Vitreous china
Fastening distance 18 cm
Odour extraction unit No

SCOPE OF DELIVERY
Water supply connection unit R 1/2″, compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
2 wall anchors
2 fixing brackets
Geberit Alpha01 flush plate for dual flush, round
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material

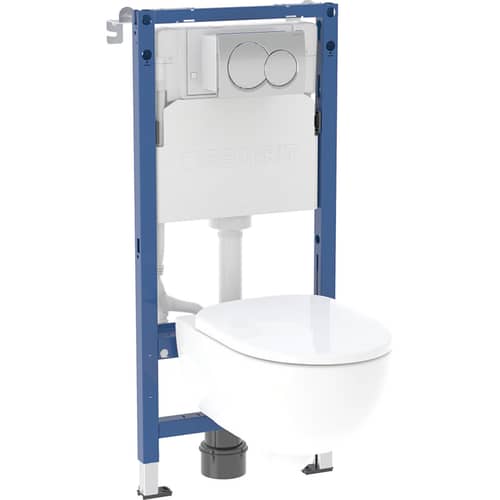

Geberit Selnova Premium wall-hung WC set, washdown, shrouded, Rimfree, with WC seat
