APPLICATION PURPOSES
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25 cm
For installation of washbasins
For concealed taps

CHARACTERISTICS
2025 range

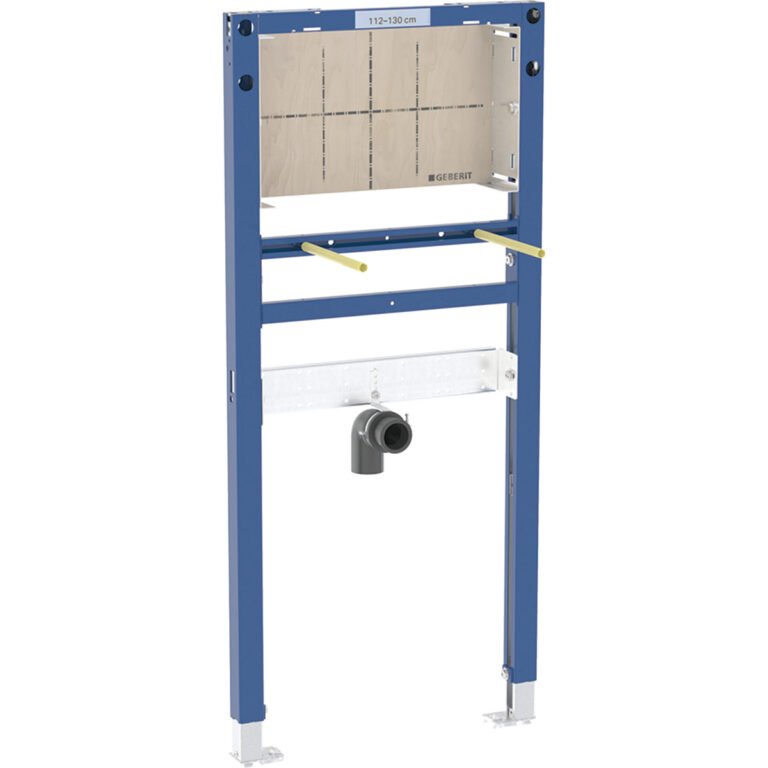

Statically self-supporting frame, protected against corrosion with powder coating
With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
Alternative fastening point for wall anchors
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Fastening distance for washbasin 5–38 cm
Threaded rods adjustable in depth with 18 or 28 cm fastening distance
Mounting plate adjustable in height and depth
Mounting plate made of veneered wood, waterproof bonded
Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3
Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936
Fastening for connection bend, height-adjustable and soundabsorbing

TECHNICAL DATA
Product material Steel

SCOPE OF DELIVERY
Connection bend made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
Fastening material
