APPLICATION PURPOSES
For metal and wood frame walls
For Geberit Duofix system walls
For installation in part- or room-height prewalls
For installation in room-height partition walls
For floor constructions 0–25 cm
For installation of washbasins
For Piave and Brenta washbasin taps, deck-mounted, with concealed function box

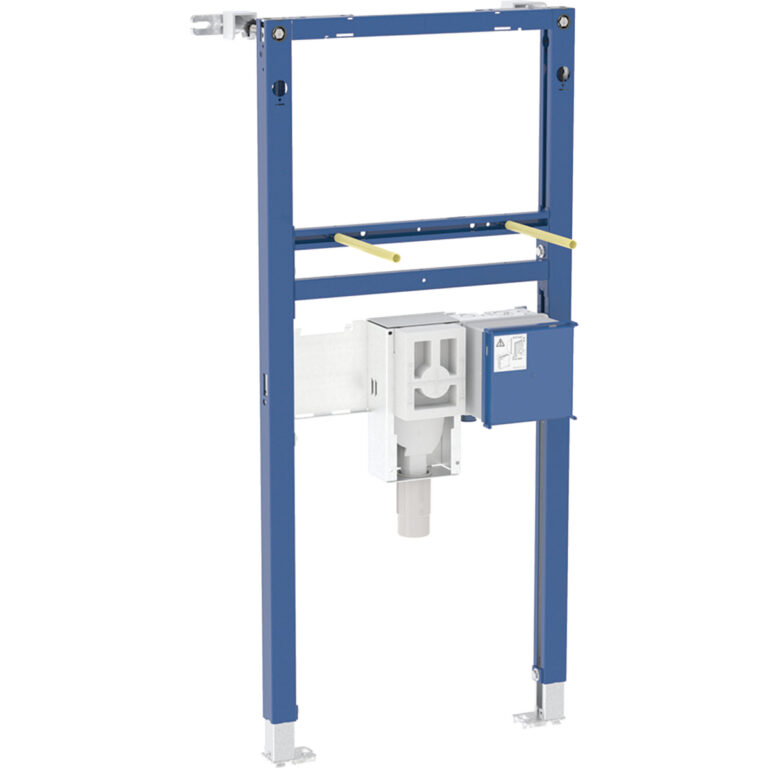

CHARACTERISTICS
2025 range
Statically self-supporting frame, protected against corrosion with powder coating
With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
Alternative fastening point for wall anchors
Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
Galvanised non-slip leg supports protected against corrosion
Fastening distance for washbasin 5–38 cm
Threaded rods adjustable in depth with 18 or 28 cm fastening distance
Concealed trap with optimum flow guidance and high selfcleaning effect
Concealed trap can be height-adjusted ± 3 cm during final installation
In-wall cabinet with straight connector made of PP, ø 50 mm
Water supply connection compatible with MasterFix and MeplaFix
Water supply connection on the bottom of concealed housing
Fastening for connection bend, height-adjustable and soundabsorbing
Concealed housing for Geberit washbasin tap, deck-mounted, for concealed function box, premounted
Shut-off unit integrated in the concealed housing
Terminal for electrical connection in concealed housing

TECHNICAL DATA
Product material Steel

SCOPE OF DELIVERY
2 wall anchors
Protection box
Protection box with cover, for concealed housing
Fastening material
