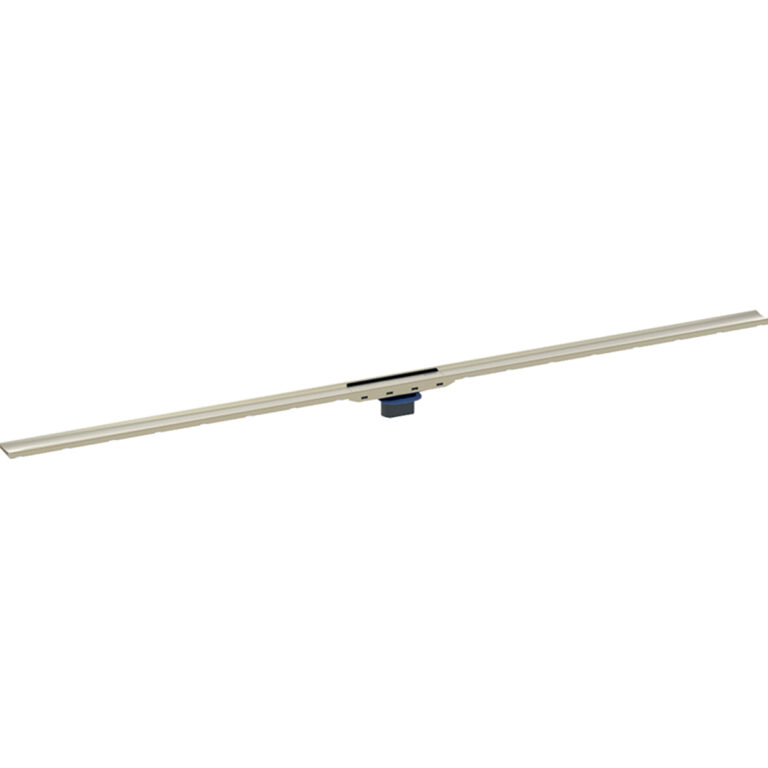

For drainage of floor-even showers
For installation in the room or on the wall
For installation in thin bed mortar
For composite seals
Suitable for less-abled installation

W:90cm H:30cm L:30 – 90cm

Characteristics
Quality-monitored in accordance with EN 1253-3
With integrated slope
Shower channel can be cut to length
Suitable for tile structures on floor from 10–35 mm
Shower channel can be aligned in height, inclination and offset
Easy cleaning
Water drainage above the composite seal
Water drainage above the finished floor when using the sealing collar
Load-bearing capacity, class K 3 (3 kN)
With antifingerprint coating

Scope of delivery
Comb insert
Inlet connection piece with compensation ring
Suction cup
Sleeve

To order additionally
Installation set for shower channels of the CleanLine series
