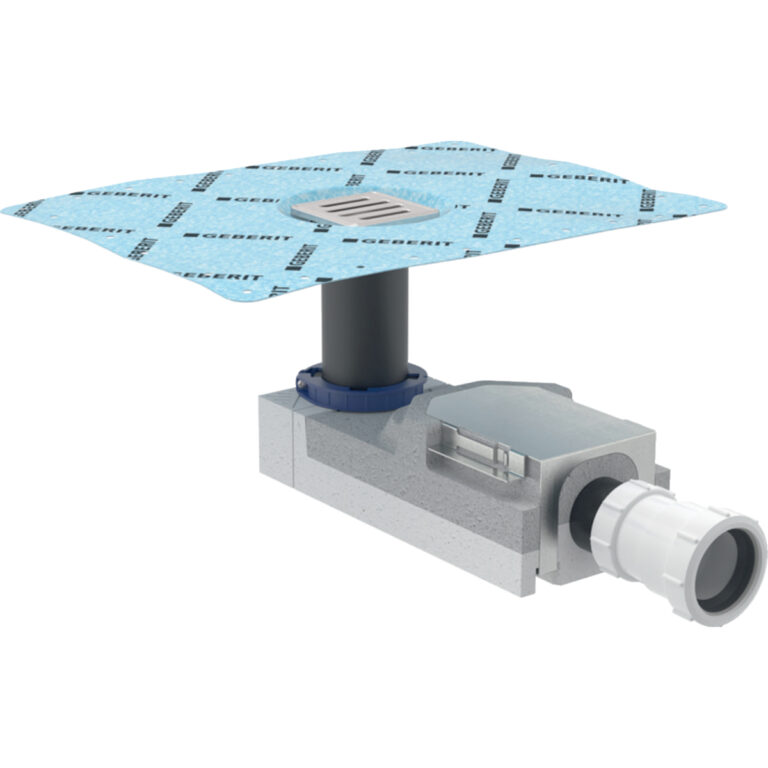

For installation inside buildings
For drainage of floor-even showers
For composite seals
For screed height ≥ 90 mm at inlet
Quality-monitored in accordance with EN 1253-3
Tile structure floor 2–40 mm
Pre-mounted sealing fleece
Sealing fleece, 10 cm circumferential, for connecting sealing systems
Grating made of stainless steel
Grating can be aligned in height, inclination and offset
Base unit made of EPS, for sound decoupling and receiving the trap

Technical data
Discharge rate 0.8 l/s
Depth of water seal 50 mm
Protection box cover with reference line
Thin bed bonding flange
Comb insert
Grating frame with compensation ring
Grating
Trap made of PE-HD
Adaptor ø 50 mm to G 2″ (ø 55 mm)
Fastening material
