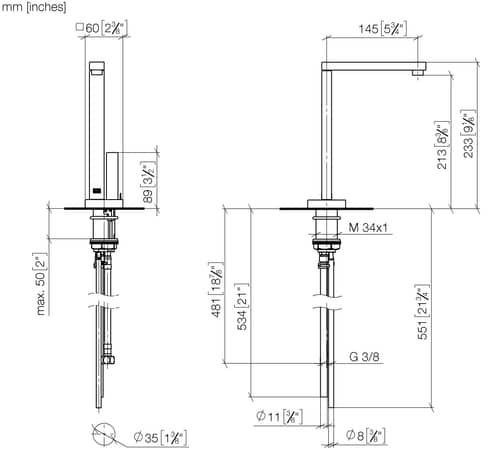

145 mm projection
Rigid, thermally insulated spout
Laminar flow
Height of mixer 233 mm
Height up to laminar flow regulator 213 mm
Hole diameter 35 mm
Provides filtered, hot water up to 93°C
Provides filtered, cold water
Max. flow 2 l/min at 3 bar flow pressure
ready-to-use control unit for wall mounting (135mm x 160mm x 60mm)
Electronic magnetic valve
100-230 V, 50-60 Hz, 18 W power supply unit, incl.
Country-specific adapter set
Lead-free
A minimum flow pressure of 3 bar is necessary for the HOT & COLD WATER DISPENSER to work perfectly in conjunction with a hot water tank and filter.
The filter cartridge must be changed every six months.
The installation instructions contain further information for guidance.
Essential Item Required for Installation
