220 mm projection
Fixed spout
Unrestricted flow
Back flow preventer in shower outlet
Automatic bath/shower diverter
1/2″ deck valves with ceramic head parts
Bar-type hand shower with anti-scale system and back flow preventer
Metal shower hose 2250 mm, chrome-plated, consisting of 1 pc. high pressure hose 500 mm and 1 pc. metal hose 1750 mm with turning cone
Compression joint
Individual rosette 60 x 60 mm

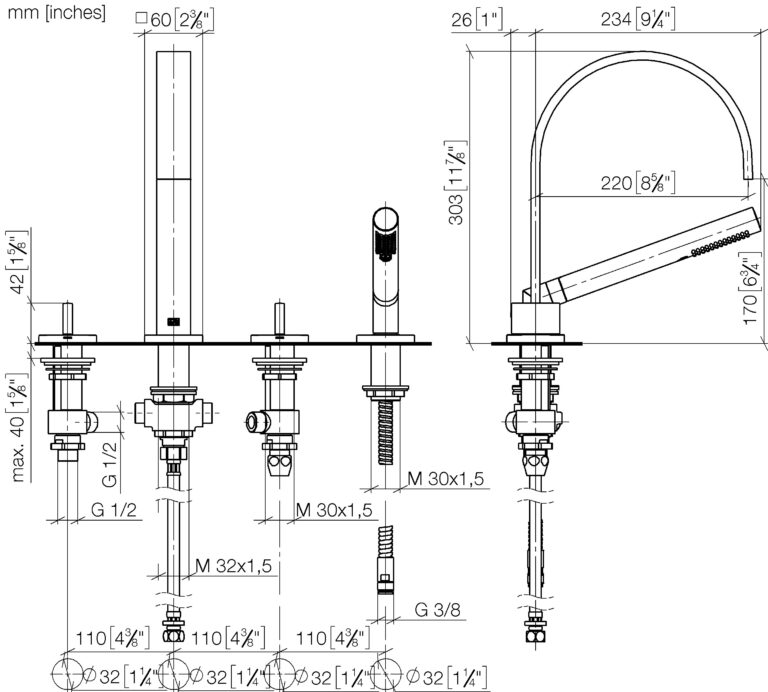

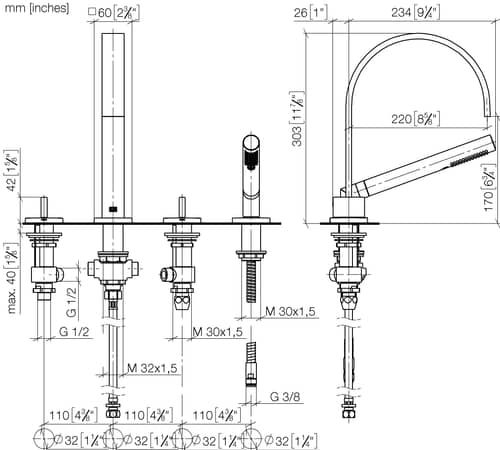

Height of mixer 300 mm
Height up to aerator 170 mm
Hole diameter deck valve/hand shower diverter 32 mm
Hole diameter spout 32 mm
20° bend
2x 1/2″ x 1/2″ x 400 mm high pressure hose
Guide for shower hose
Max. hand shower flow 9 l/min
Two-piece design allows hose to later be changed without dismantling the fitting.
The Perfecto installation kit is recommended for optimum mounting.
Intrinsic protection against back flow.
