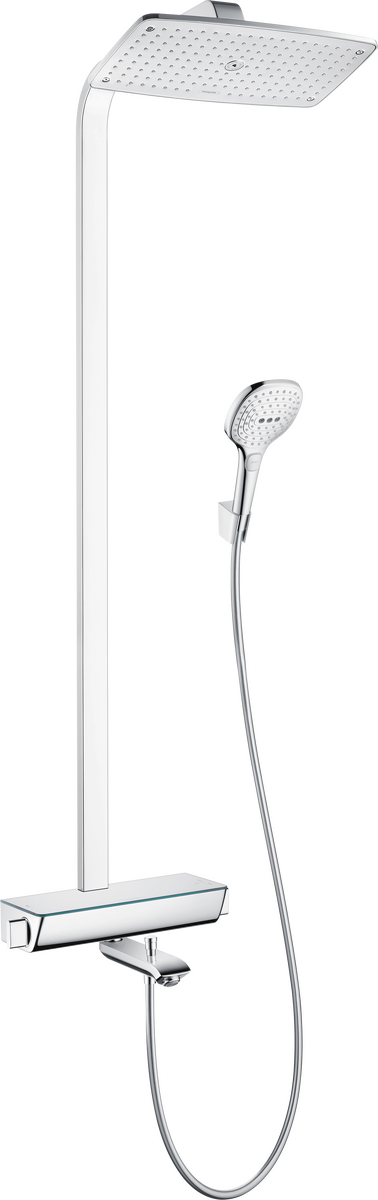

Overhead shower Raindance E 360 Air
Shower head size: 360 x 190 mm
Overhead shower angle adjustable
Shelf: made of safety glass
Spray pattern: RainAir
Flow rate RainAir 17 l/min at 3 bar
Operating pressure: min. 1.3 bar/max. 10 bar
Fully chrome-plated spray face
Shower arm length: 380 mm
Thermostat Ecostat Select
Flow rate bath filler 20 l/min at 3 bar
Shelf colour: chrome or white
Isolated water conduction
Safety stop at 40°C
Adjustable hot water limitation
Outlets controlled via volume control/diverter and may not be used simultaneously
Exposed design allows easy installation, all working parts are outside of the wall
Connection dimension 1/2″
Connection thread ½”
Centre distance 150 mm ± 12 mm
In case of installation on existing G ½ connections, adaptor no. 02026000 must be used
WRAS 1403038

Consists of
•Porter’S shower support (# 28331000)
•Isiflex shower hose 1.60 m (# 28276000)
•Raindance Select E 120 3jet hand shower (# 26520000)
