Stainless Steel
Shower head size: 970 x 970 mm
Spray pattern: RainAir, normal spray, Laminar spray
Flow rate RainAir 20.6 l/min at 3 bar
Flow rate normal spray 33.3 l/min at 3 bar
Flow rate laminar spray 15.6 l/min at 3 bar
Operating pressure: min. 2 bar/max. 6 bar
Can be activated individually or in combination, the 3 spray zones must be controlled via 3 valves or a Diverter valve with 3 outlets
Spray zones: Bodyzone – outer overhead shower zone, Rainzone – inner overhead shower zone with AirPower function, Laminar spray – at Ø 17 mm
Spray disc surface: polished stainless steel
Frame: brushed stainless steel
Installation type: ceiling – exposed or concealed ceiling-flush
With or Without integrated LED lighting
Power supply: 12 V
Transformer power supply for concealed installation 12 V, 18 W
Input voltage: 100 – 240 V AC / 50-60 Hz
Output voltage: 12 V – DC
Colour temperature: 2700 K
Dimmable: no
Energy efficiency label: C
This product requires a Highflow thermostat module

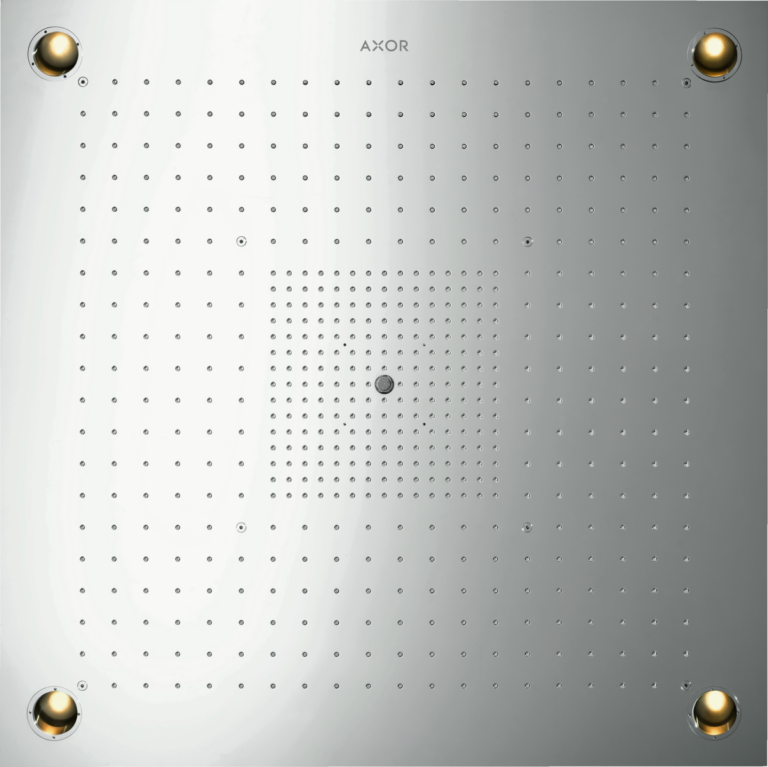

ShowerHeaven 970 x 970 mm Overhead Shower
10623800 / 10621800
Shower Heads, ShowersShowerHeaven 970 x 970 mm Overhead Shower
Price range: £9,681.50 through £9,732.50
