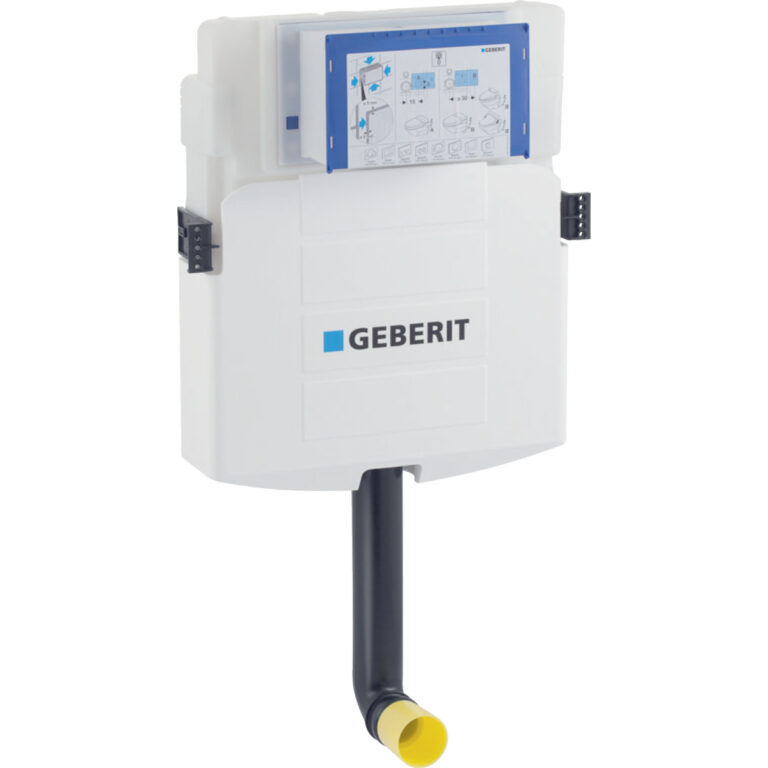

Sigma concealed cistern 12cm
6 / 3 litres, ship model, with front actuation
For installation in ships
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For floor-standing and wall-hung WCs
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Immediate post flush possible with factory setting
Flush bend fitted
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the rear or top centre
Elbow tap connector resistant to salt water
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length

Technical data
Flow pressure 0.1–10 bar
Maximum operating temperature, water 25 °C
Flush volume, factory setting 6 and 3 l
Flush volume large, adjustment range 4.5 / 6 / 7.5 l
Flush volume small, adjustment range 3–4 l
