220 mm projection
Complete hand shower set: normal flow
Spout: circular, air-enriched flow
Complete hand shower set with anti-scale system with anti-scale system
Automatic bath/shower diverter

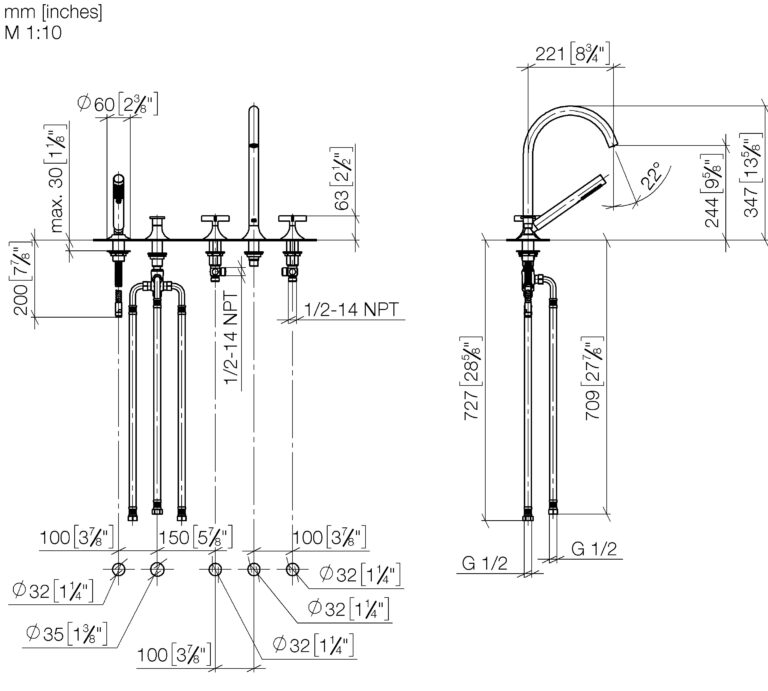

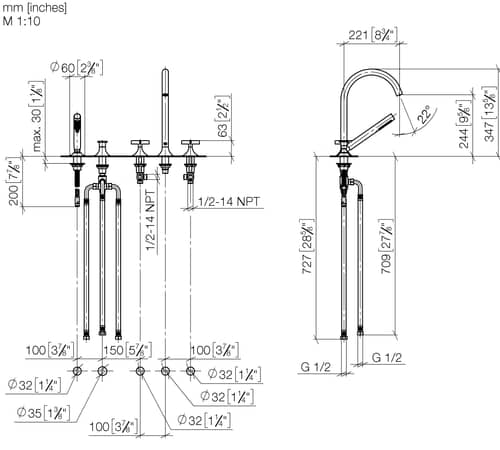

Height of mixer 347 mm
Height up to aerator 244 mm
Deck valve hole diameter 32 mm
Hole diameter spout 32 mm
Hole diameter for complete hand shower set 32 mm
Rosette for complete hand shower set Ø 60mm
Rosette for spout Ø 60mm
Rosette for deck valve Ø 60mm
Metal shower hose 1750mm with integrated anti-twist protection Max.
Spout flow rate 22 l/min Max.
Flow for complete hand shower set 7.6 l/min
Intrinsic protection against back flow
