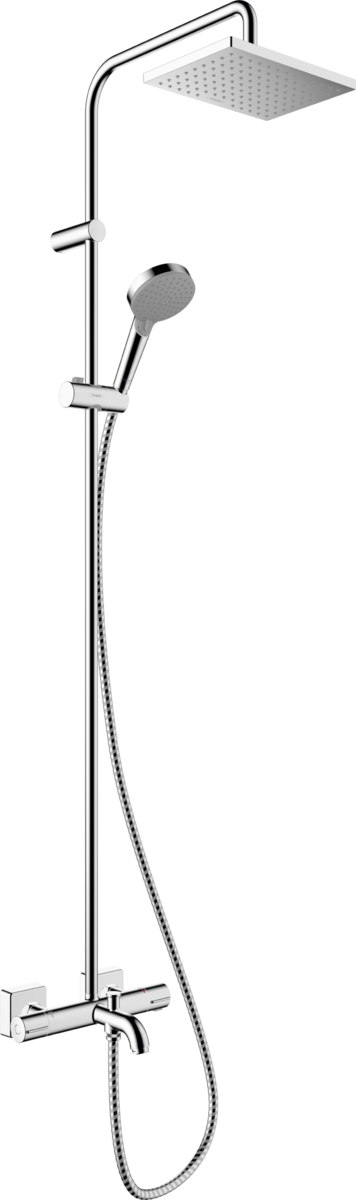

Consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
Overhead shower Vernis Shape 230 1jet
Shower head size overhead shower: 230 x 170 mm
Spray type overhead shower: Rain
Ball-joint: overhead shower angle adjustable
Spray type hand shower: Rain, IntenseRain
Shower bar diameter: 19 mm
Height-adjustable slider with locking push-button slider
Shower arm length overhead shower: 426 mm
Thermostat Vernis
Safety lock at 40° C
Adjustable hot water limitation
Outlets controlled via turning handle
Will not run two outlets at same time
Suitable for continuous flow water heaters
Mounting type: exposed installation
Connection dimension DN15
Connection thread G ½
Centre distance 150 ± 12 mm
Standard Version
Maximum flow rate at 3 bar: 20 l/min
Minimum flow pressure: 1 bar
Operating pressure: min. 1 bar/max. 10 bar
EcoSmart Version
Maximum flow rate at 3 bar: 20 l/min
Minimum flow pressure: 1 bar
Operating pressure: min. 1 bar/max. 10 bar
