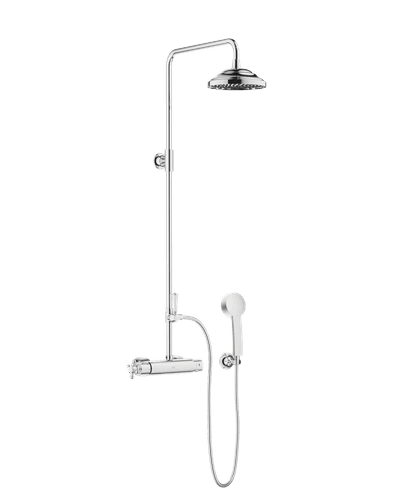

Surface-mounted shower system with surface-mounted thermostat
Shower with fixed riser projection 420 mm
Rain shower Ø 200mm
Rain shower with anti-scale system
Max. rainshower flow 9 l/min
Hand shower: three settings: normal flow, soft flow, massage flow
Spray head Ø 95 mm
Max. hand shower flow 9 l/min
Rotary diverter for fixed-riser shower/hand shower
Height of fittings up to rain shower (bottom edge) 985mm
Height of fittings up to top edge of elbow 1160mm
Two-part push-on rosette Ø 65 mm
Rosette for shower holder Ø 65mm
Rosette for wall mounting Ø 60mm
Gauge 150 mm – 13 mm
Metal shower hose 1250mm with integrated anti-twist protection
1/2″ connection
Pipe diameter 20 mm
Intrinsic protection against back flow
