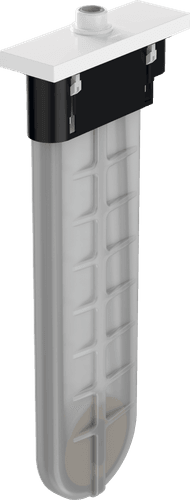

Consists of: hose box, shower hose, escutcheon
Suitable for rim mounted or tile surround installation
Designed to run 1 function
sBox for quiet, smooth and protected hose guidance
Flow rate (at 3 bar): 9.5 l/min
Operating pressure: min. 1 bar/max. 10 bar
Bath rim width at least 100 mm
Clamping range: 0 – 30 mm
Maximum pull-out length of hand shower 1.45 m
Removable for service at any time
Protected against backflow for domestic use (according to DIN EN 1717)
WRAS 1907041
Essential Item Required For Installation
