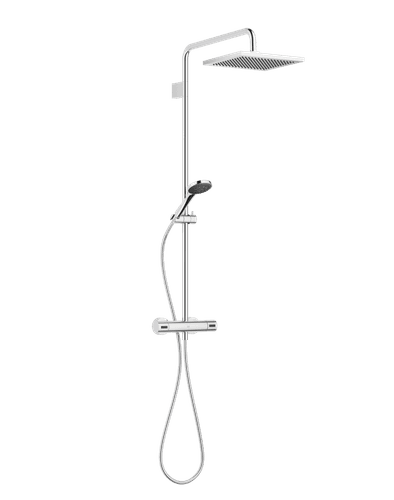

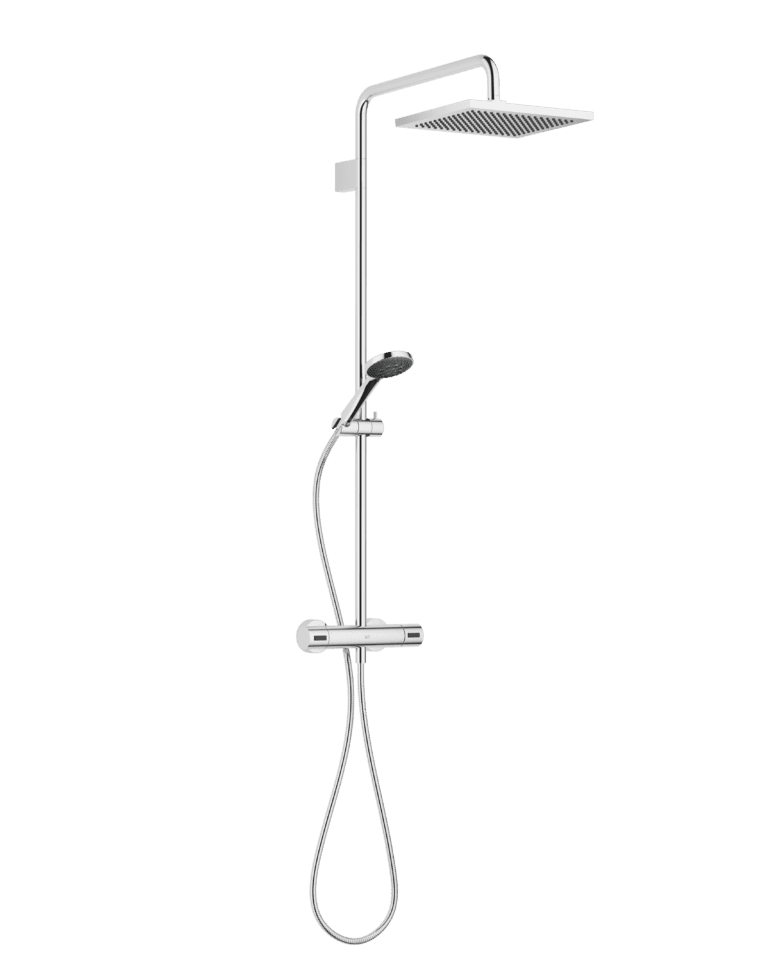

Shower with fixed riser projection 453 mm
Overhead shower: rain flow
Rain shower 300 x 240mm
Rain shower with anti-scale system
Max. rainshower flow 14 l/min
Hand shower: normal flow
Spray head Ø 100 mm
Max. hand shower flow 15 l/min
Rotary diverter with volume control and shut-off function
Slide-on rosettes Ø 70 mm
Height of fittings up to rain shower (bottom edge) 985mm
Height of fittings up to top edge of elbow 1170mm
Gauge 150 mm – 13 mm
Metal shower hose 1750mm with integrated anti-twist protection
1/2″ connection
Slide bar
Pipe diameter 23.5 mm
Intrinsic protection against back flow
