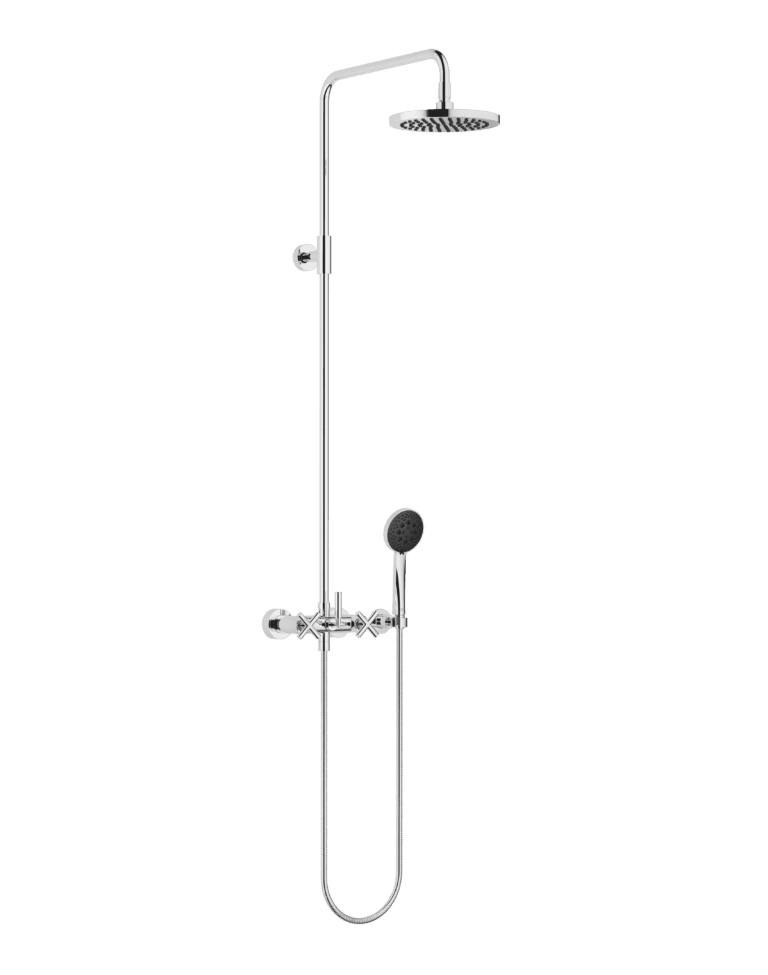

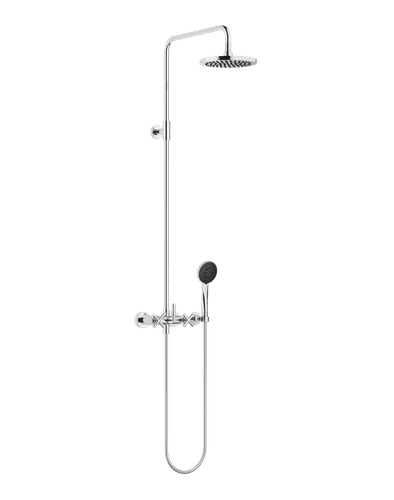

Shower with fixed riser projection 420 mm
Overhead shower: rain flow
Rain shower Ø 220mm
Rain shower with anti-scale system
Max. rainshower flow 9 l/min
Hand shower: normal flow
Spray head Ø 100 mm
Max. hand shower flow 15 l/min
Rotary diverter for fixed-riser shower/hand shower
Height of fittings up to rain shower (bottom edge) 1007mm
Height of fittings up to top edge of elbow 1167mm
Rosette for shower holder Ø 55mm
Rosette for wall mounting Ø 57mm
Rosette for shower mixer Ø 65mm
Gauge 150 mm – 13 mm
1500 mm metal shower hose
1/2″ connection
Pipe diameter 20 mm
Intrinsic protection against back flow
